LT117AK is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC REG LINEAR POS ADJ TO3. Review the specifications below when checking this part for your BOM.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LT117AK
- Description：IC REG LINEAR POS ADJ TO3
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tube
- Output Configuration：-
- Output Type：-
- Number of Regulators：1
- Voltage - Input (Max)：-
- Voltage - Output (Min/Fixed)：-
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：-
- Current - Output：-
- Current - Quiescent (Iq)：-
- Current - Supply (Max)：-
- PSRR：-
- Control Features：-
- Protection Features：-
- Operating Temperature：-55°C ~ 150°C
- Mounting Type：Through Hole

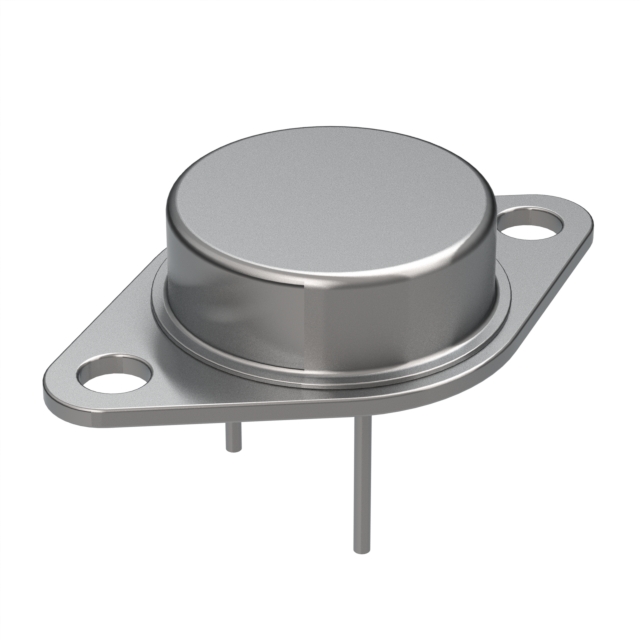

- Package / Case：TO-204AA, TO-3
- Supplier Device Package：TO-3
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LT117AK
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview
The LT117AK is a high-voltage positive adjustable linear regulator manufactured by Analog Devices Inc. It operates with an input voltage range of 3V to 40V and provides an adjustable output voltage from 1.25V to 37V. The device supports a maximum output current of 1.5A and features internal current limiting and thermal overload protection. Packaged in the TO-257 (TO-39) metal can, it is designed for applications requiring robust performance under high differential input-output voltages.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary
- Integrated high-voltage adjustable regulation capability
- Built-in current limiting and thermal overload protection circuits
- Monolithic construction ensuring stable operation across wide input ranges
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications
- High-voltage power supply systems
- Industrial control equipment
- Battery charging circuits
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes
Verify the specific suffix 'AK' against official Analog Devices documentation to confirm package type and temperature grade. Ensure compatibility with TO-257 mounting requirements. Cross-reference part numbers with Linear Technology archives if sourcing legacy inventory. Confirm RoHS compliance status through manufacturer datasheets prior to procurement.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes
Select this component when designing circuits requiring adjustable regulation up to 40V input. Consider the TO-257 package for high-power dissipation needs. Evaluate thermal management strategies due to potential heat generation at high differential voltages. Compare against modern LDO alternatives if size constraints exist.
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context
The LT117 series belongs to a family of high-voltage adjustable regulators originally developed by Linear Technology, now part of Analog Devices. These devices are known for reliability in industrial environments. The LT117AK specifically denotes a variant within this lineage, maintaining the core functionality of adjustable voltage regulation with enhanced ruggedness.
