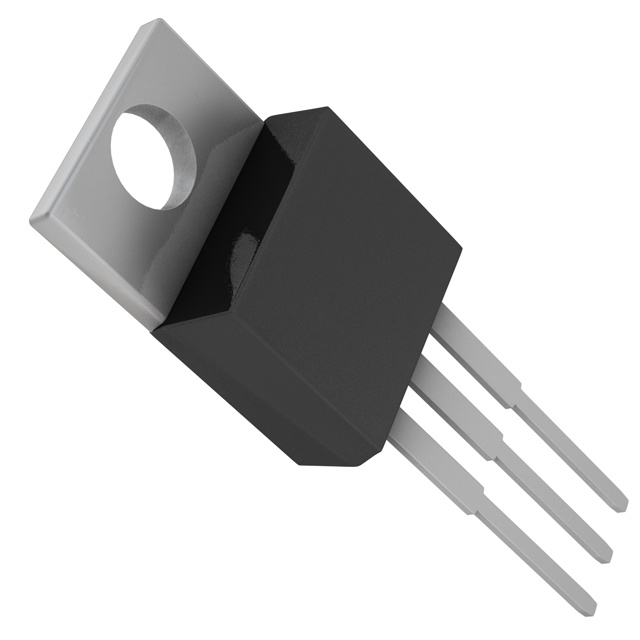

LT1584CT-3.3#PBF

$12.91

Description：IC REG LINEAR 3.3V 7A TO220-3
Series：-
Mfr：Analog Devices Inc.
Package：Tube

SKU:30e3e665eb99 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LT1584CT-3.3#PBF is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC REG LINEAR 3.3V 7A TO220-3. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LT1584CT-3.3#PBF

Description：IC REG LINEAR 3.3V 7A TO220-3
Series：-
Mfr：Analog Devices Inc.
Package：Tube
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：7V
Voltage - Output (Min/Fixed)：3.3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：1.4V @ 7A
Current - Output：7A
Current - Quiescent (Iq)：-
Current - Supply (Max)：-
PSRR：-
Control Features：-
Protection Features：Over Current, Over Temperature, Short Circuit
Operating Temperature：0°C ~ 125°C
Mounting Type：Through Hole
Package / Case：TO-220-3
Supplier Device Package：TO-220-3

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LT1584CT-3.3#PBF

LT1584CT-3.3#PBF

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LT1584CT-3.3#PBF is a fixed-output low dropout regulator providing 3.3V at up to 7A. It operates with an input voltage range of 4.75V to 7V and features fast transient response optimized for microprocessor applications. The device includes on-chip thermal limiting and trimmed current limit protection. It utilizes a standard 3-pin TO-220 through-hole package.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Fast transient response designed for low voltage microprocessor loads
On-chip thermal limiting protects against excessive junction temperatures
Trimmed current limit ensures specified output current capability
Guaranteed dropout voltage across multiple load currents

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Intel Pentium processor supplies
PowerPC processor supplies
Low voltage logic supplies
Post regulator for switching supplies

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix #PBF indicates lead-free compliance and RoHS adherence when sourcing. Confirm the CT designation corresponds to the commercial temperature grade (0°C to 125°C) required for the application environment. Ensure the TO-220 package type matches the board layout constraints.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component for applications requiring high current delivery with minimal input-to-output voltage differential. The fixed 3.3V output eliminates external resistor networks needed for adjustable versions. Consider the thermal resistance characteristics and heat sinking requirements given the 7A maximum output capability.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LT1584/LT1585/LT1587 family of three-terminal regulators. It is pin-compatible with the older LT1083/1084/1085 series but offers lower dropout voltage and faster transient response. The LT1584 specifically provides the highest current capacity within the family at 7A.
