LT1795IFE#TRPBF

Instrumentation, Op Amps, Buffer Amps Overview

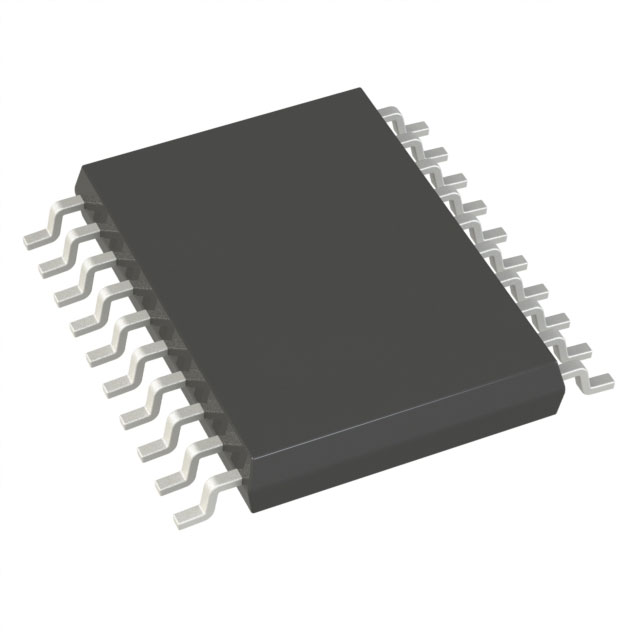

The LT1795IFE#TRPBF is a dual current feedback amplifier from Analog Devices Inc. housed in a 20-lead TSSOP package. It features a 50MHz bandwidth and a 900V/μs slew rate with ±15V supplies. The device provides up to 1A output drive current and operates on supply voltages ranging from ±5V to ±15V. Key electrical parameters include a 68dB voltage gain, 62dB CMRR, and 77dB PSRR. Input offset voltage is typically ±4.5mV, with input noise density at 3.6nV/√Hz. It includes shutdown functionality and adjustable supply current.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Dual high-output current capability for driving low impedance loads
• Integrated shutdown mode for power reduction
• Adjustable supply current via external resistor
• Thermal shutdown protection

Instrumentation, Op Amps, Buffer Amps Applications

• ADSL HDSL2 line drivers
• Video amplifiers
• Cable drivers
• Test equipment amplifiers

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix #TRPBF indicates tape and reel packaging when sourcing. Confirm the I grade meets extended temperature requirements of -40°C to +85°C. Ensure the TSSOP-20 footprint matches the design layout. Check datasheet notes regarding thermal resistance variations based on PCB copper area.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component for applications requiring high peak currents into low impedance lines. The current feedback architecture supports wide bandwidths with fast transient response. Consider the optional compensation network if driving capacitive loads. Verify that the differential input swing limits are compatible with the signal source.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the LT1795 family of dual current feedback amplifiers. It shares core specifications with variants like the LT1795ISW but differs in package type. The TSSOP form factor offers a smaller footprint compared to SOIC options while maintaining similar electrical performance characteristics.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

LT1795CFE#PBF

Instrumentation, Op Amps, Buffer Amps FAQ

How is the quiescent current adjusted?

An external resistor connected between V+ and the SHDN pin or between SHDNREF and ground sets the bias current.

What is the purpose of the COMP pin?

The COMP pin allows connection of an optional compensation capacitor to stabilize the amplifier when driving large capacitive loads.
