LT3971AIMSE-5#PBF

Overview

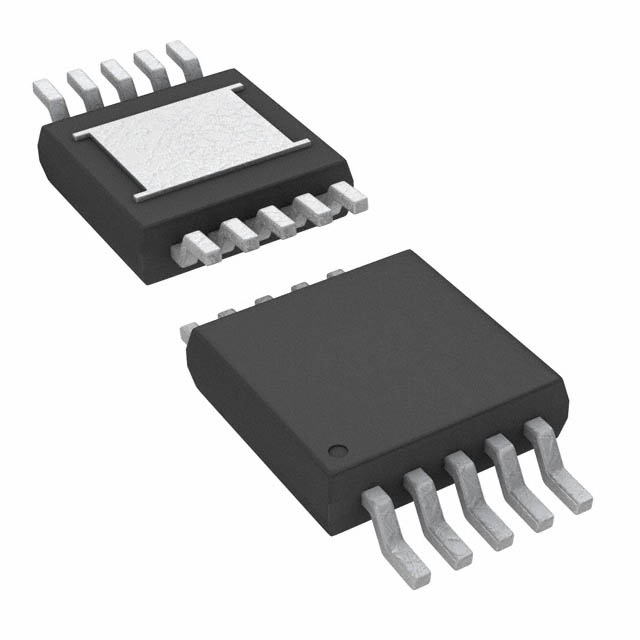

The LT3971AIMSE-5#PBF is a monolithic buck switching regulator from the LT3971A series, manufactured by Analog Devices (formerly Linear Technology). It operates with an input voltage range of 4.3V to 38V and delivers up to 1.2A output current. The device features a fixed 5V output and supports adjustable switching frequencies up to 2MHz. Key electrical specifications include a quiescent current of 2.8µA during regulation and 700nA in shutdown mode. It utilizes Burst Mode operation for high efficiency at light loads while maintaining low output ripple. The component is housed in a 10-lead MSOP package with an exposed thermal pad, rated for operation between -40°C and +125°C.

Feature Summary

• Ultra-low quiescent current design ensures minimal power consumption during no-load regulation and deep shutdown states.
• Burst Mode operation maintains high efficiency at low output currents while keeping output voltage ripple below typical limits.
• Internally compensated current-mode topology provides fast transient response and stable loop performance without external compensation components.
• Integrated soft-start and power good flag facilitate controlled inrush current management and system sequencing reliability.

Applications

• USB-powered portable electronic devices requiring strict power budgeting
• Battery-operated systems needing extended standby life through ultra-low quiescent current
• Industrial control modules utilizing wide input voltage ranges
• Embedded computing platforms requiring compact surface-mount solutions

Procurement Notes

Verify that the ordering suffix #PBF confirms lead-free tin-silver-copper solder finish and RoHS compliance as per manufacturer standards. Confirm the 'I' grade designation matches required industrial temperature range specifications (-40°C to +125°C). Ensure the 'MSE' package code corresponds to the 10-lead MSOP with exposed pad footprint. Cross-reference the '-5' suffix to validate the fixed 5V output configuration and specific USB application current characteristics defined in the official datasheet.

Selection Notes

Select this component when a fixed 5V output is required alongside wide input voltage tolerance up to 38V. The LT3971A variant offers improved reference accuracy and specified output pin current limits compared to the standard LT3971, making it suitable for sensitive downstream loads. Consider the 2MHz adjustable frequency option if smaller passive component sizes are prioritized over slightly higher switching losses. The internal compensation simplifies layout requirements but requires adherence to recommended capacitor values for stability.

Part Context

This part belongs to the LT3971 family of step-down regulators designed for high-efficiency power conversion in space-constrained applications. The LT3971A revision enhances precision and adds specific electrical parameters relevant to USB interfaces. It competes in the market for single-output buck converters offering low static current and integrated power switches. The MSOP-10EP package provides a balance between thermal dissipation capabilities and board space efficiency for portable electronics.

Replacement Considerations

Direct replacements within the same family include LT3971IMSE-5#PBF for commercial grade or LT3971EMSE-5#PBF for extended temperature ranges, provided the thermal and electrical tolerances align with the design requirements. Verify pinout compatibility and ensure that any substitute maintains the same fixed 5V output and quiescent current specifications to preserve system power management behavior.
