LT5524EFE

Overview

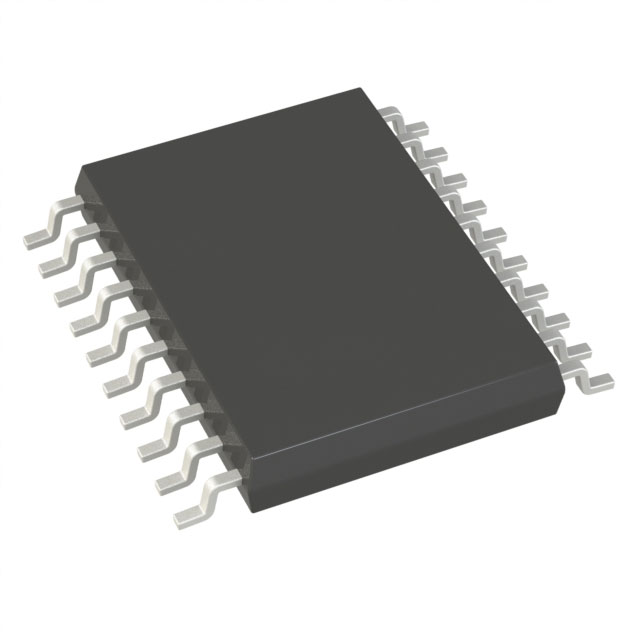

The LT5524EFE is a low distortion intermediate frequency (IF) amplifier and analog-to-digital converter (ADC) driver manufactured by Analog Devices Inc. It features digitally controlled gain adjustment, allowing for precise signal level management in RF front-end architectures. The device operates with a maximum frequency of 540 MHz and provides a typical gain of 4.5 dB. Designed for wideband applications, it maintains a 50 Ω characteristic impedance to ensure proper signal matching within transmission lines. The component is housed in a TSSOP-20 plastic package and supports an operating temperature range from -40 °C to +85 °C.

Feature Summary

• Digitally controlled gain adjustment for flexible signal processing
• Low distortion performance optimized for ADC driving applications
• Wideband operation suitable for intermediate frequency signals

Applications

• Intermediate frequency amplification in communication systems
• Driving high-speed analog-to-digital converters
• RF front-end signal conditioning

Procurement Notes

Verify the specific suffix and RoHS compliance status against the manufacturer's current documentation, as legacy parts may have varying environmental certifications. Confirm the package type matches the design requirements, as variations exist within the product family. Ensure the supplier source is authorized to guarantee part authenticity and traceability. Check for any lead-free or tin/lead terminal finish specifications required by the assembly process.

Selection Notes

Select this component when designing circuits that require precise digital gain control for IF stages. It is appropriate for systems needing low distortion characteristics to preserve signal integrity before digitization. Consider the 540 MHz bandwidth limit and the 4.5 dB gain profile when determining if additional amplification stages are necessary. Evaluate the thermal performance within the specified operating temperature range during system integration.

Part Context

The LT5524EFE belongs to the LT5524 series of low distortion IF amplifiers and ADC drivers. This series is designed to interface between analog RF/IF processing blocks and digital conversion stages. The device integrates functionality to simplify board space and reduce component count in complex receiver architectures requiring programmable gain capabilities.

Replacement Considerations

Consult official Analog Devices substitution guides for verified alternatives. Cross-reference pinouts and electrical specifications carefully when evaluating potential replacements.
