LT6372IUDC-1#PBF

Instrumentation, Op Amps, Buffer Amps Overview

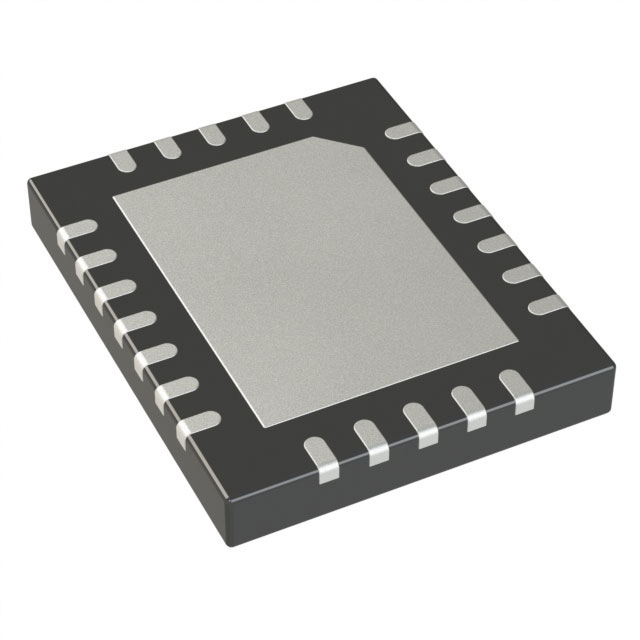

The LT6372IUDC-1#PBF is a high precision instrumentation amplifier in a 20-lead QFN package. It features a gain range of 1 to >1000 set by a single resistor, with a maximum input offset voltage of 60µV and drift of 0.6µV/°C. The device offers a 3.1MHz bandwidth at unity gain, 80dB CMRR at G=10, and 2.75mA supply current. It operates on a 4.75V to 35V supply within the -40°C to 85°C temperature range.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Integrated output clamping and level shifting capabilities simplify direct interfacing with analog-to-digital converters.
• Built-in input RFI filtering maintains signal accuracy in environments with harsh electromagnetic interference.
• Proprietary bipolar process ensures industry-leading DC precision and exceptional long-term stability.

Instrumentation, Op Amps, Buffer Amps Applications

• Bridge Amplifier
• Thermocouple Amplifier
• Medical Instrumentation

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific I-grade suffix for the -40°C to 85°C operating range against project requirements. Confirm the UDC QFN package dimensions match the PCB footprint. Ensure the #PBF designation aligns with lead-free manufacturing standards required for the assembly process.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component when high DC precision and integrated ADC interface features are necessary. The split reference configuration allows for precise output level shifting without external components. Consider the thermal performance of the QFN package if operating near the upper temperature limits.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the LT6372 family of programmable gain instrumentation amplifiers. It improves upon previous models like the LT6370 by adding integrated output clamps and level shifters. The device utilizes a proprietary high-performance bipolar process for superior accuracy and stability compared to standard CMOS alternatives.

Instrumentation, Op Amps, Buffer Amps Replacement Considerations

LT6372IMSE-1#PBF (MSOP Package)

Instrumentation, Op Amps, Buffer Amps FAQ

How does the split reference configuration function?

REF1 and REF2 can be used together to form a voltage divider, allowing the output to be level-shifted to the center of an ADC's input range without requiring external components.

What is the purpose of the CLLO and CLHI pins?

These pins provide integrated output clamping. The voltage applied defines the lower and upper limits of the output swing, protecting downstream ADC inputs from overvoltage conditions.
