LT7171RV-1#TRPBF

Overview

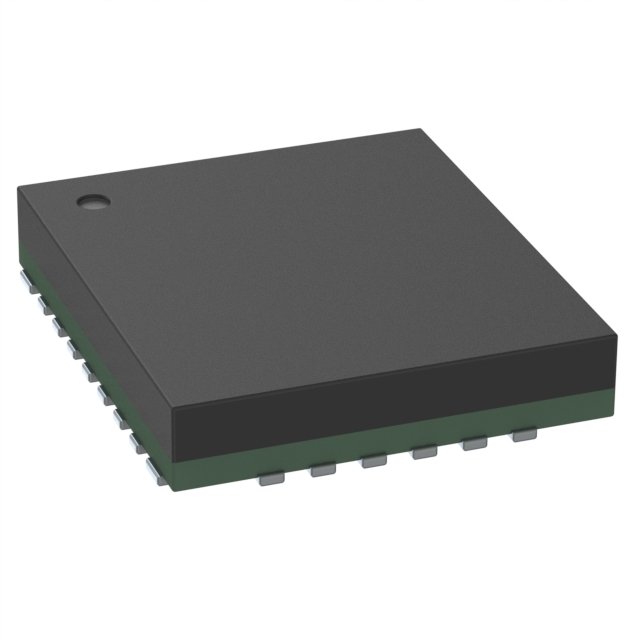

The LT7171RV-1#TRPBF is a Silent Switcher step-down regulator IC from Analog Devices Inc., housed in a 30-LQFN package. It supports an input voltage range of 1.5V to 16V and delivers up to 20A output current. The device provides a programmable output voltage between 0.4V and 5.5V with a single positive output configuration. Operating frequencies are adjustable from 400kHz to 4MHz, and it functions within a junction temperature range of -40°C to 150°C.

Feature Summary

• Integrates Silent Switcher technology for minimized radiated electromagnetic interference without external shielding.
• Features synchronous rectification architecture for enhanced conversion efficiency across load ranges.
• Supports flexible switching frequency programming to optimize component size and dynamic response.

Applications

• Industrial equipment power distribution
• Telecommunications infrastructure systems
• Point-of-load regulation for high-current digital circuits

Procurement Notes

Verify the specific suffix against official documentation to confirm pinout and functional variations. Ensure compatibility with required thermal management solutions given the high current capability. Confirm RoHS compliance status matches project environmental standards before finalizing procurement orders.

Selection Notes

Select this component when designing systems requiring high current density and strict EMI constraints. Evaluate the trade-off between switching frequency and passive component size. Ensure the input source can handle the peak current demands during transient loads.

Part Context

This part belongs to the Silent Switcher family, designed to address EMI challenges in compact power designs. It serves as a monolithic solution for applications needing robust performance in space-constrained environments.

Replacement Considerations

LT7171RV#TRMPBF
