LT8374RUFM-1#WTRPBF

LED Driver IC Overview

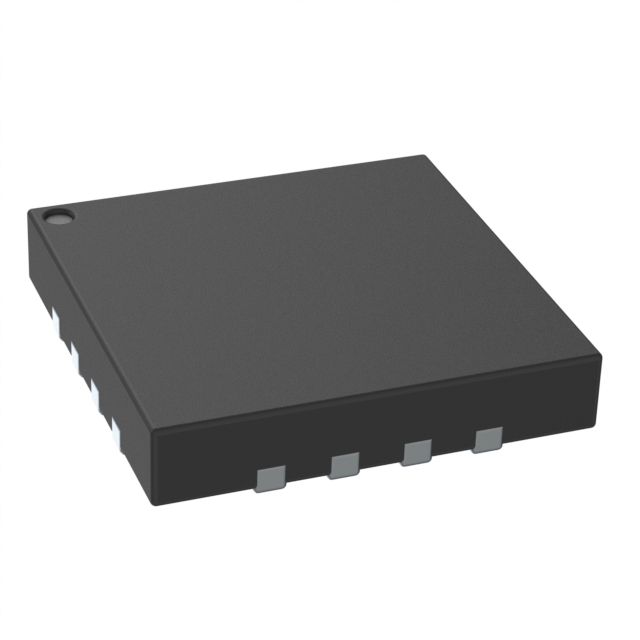

The LT8374RUFM-1#WTRPBF is a monolithic synchronous step-down DC/DC converter designed for LED lighting applications. It features a fixed switching frequency of 2 MHz and supports external clock synchronization. The device operates with an input voltage range from 6.5 V to 60 V, delivering a regulated output current of 1.2 A. It utilizes peak current mode control for high efficiency and includes analog and PWM dimming capabilities. The component is housed in a 16-lead QFN package measuring 4 mm by 4 mm.

LED Driver IC Feature Summary

• Monolithic synchronous buck topology for high-efficiency LED driving
• Supports both analog and pulse-width modulation (PWM) dimming methods
• Fixed 2 MHz switching frequency with external synchronization capability
• AEC-Q100 qualified for automotive reliability standards

LED Driver IC Applications

• Automotive exterior and interior LED lighting systems
• High-brightness general illumination drivers
• Industrial LED string regulation
• Battery-powered LED applications requiring wide input ranges

LED Driver IC Procurement Notes

Verify the specific suffix #WTRPBF indicates tape-and-reel packaging when ordering. Confirm that the -1 variant matches the required pinout and functional specifications against the official Analog Devices datasheet. Ensure compatibility with the target PCB footprint for the 16-lead QFN-4x4 package. Check for any regional distribution restrictions or obsolescence notices prior to final procurement decisions.

LED Driver IC Selection Notes

Select this component when a wide input voltage range up to 60 V is required for single-string LED applications. The 2 MHz fixed frequency allows for smaller passive components compared to lower-frequency alternatives. Consider the AEC-Q100 qualification if the application demands automotive-grade reliability. Evaluate thermal performance requirements based on the 1.2 A output current capability within the specified QFN package constraints.

LED Driver IC Part Context

This part belongs to the LT8374 family of synchronous step-down converters. The LT8374 series is engineered for high-efficiency power conversion in demanding environments. The specific model integrates the controller, power switches, and bootstrap diode into a single compact solution, simplifying the design process for LED drivers while maintaining robust performance across varying load conditions.

LED Driver IC Replacement Considerations

LT8374RUFM-1#WPBF is a verified alternative offering identical electrical characteristics but supplied in tube packaging instead of tape-and-reel.
