LT8612EUDE

Overview

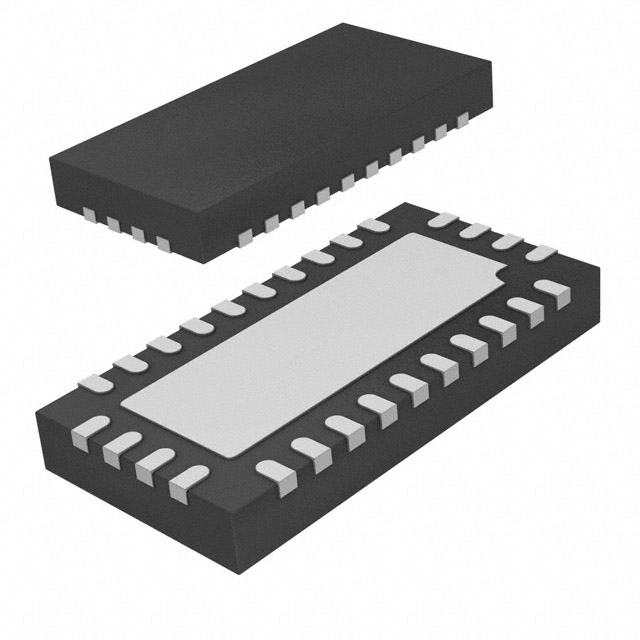

The LT8612EUDE is a dual-channel, synchronous step-down DC-to-DC converter manufactured by Analog Devices Inc. It operates with an input voltage range up to 42V and provides two independent output channels, each capable of delivering up to 2A of continuous current. The device integrates Silent Switcher 2 architecture to minimize electromagnetic interference (EMI) without requiring external ferrite beads or spread spectrum clocking. Key electrical parameters include a quiescent current of 6.2µA, a switching frequency adjustable from 300kHz to 2.2MHz, and an output voltage range starting from 0.6V. The component is housed in a thermally enhanced 20-lead DFN package designed for surface-mount applications.

Feature Summary

• Integrates Silent Switcher 2 architecture for ultra-low EMI performance across the entire load range
• Features dual independent channels with synchronized or independent operation modes
• Includes internal compensation and soft-start circuitry for simplified design implementation
• Provides comprehensive protection against overcurrent, short circuit, and thermal overload conditions

Applications

• Industrial automation systems requiring isolated or multi-rail power distribution
• Telecommunications infrastructure equipment with strict EMI compliance requirements
• Medical imaging devices needing low-noise, high-efficiency power regulation
• Automotive infotainment and sensor modules operating under wide input voltage variations

Procurement Notes

Verify that the ordering part number matches the exact suffix configuration required for your specific application needs. Confirm lead times directly with authorized distributors as availability fluctuates based on production schedules. Ensure that the procurement channel is an authorized partner to guarantee component authenticity and traceability. Check for any recent product change notices that might affect packaging or documentation updates prior to finalizing orders.

Selection Notes

Select this component when dual-channel power delivery is required within a compact form factor. Evaluate the thermal performance of the PCB layout to ensure adequate heat dissipation for the 2A per channel capability. Consider the switching frequency setting to balance efficiency against passive component size. Verify that the input voltage range aligns with the system's supply characteristics and that the output voltage settings meet the load requirements precisely.

Part Context

The LT8612 belongs to Analog Devices' Silent Switcher family, which focuses on reducing radiated emissions through patented capacitor-based switching techniques. This series targets applications where space constraints and electromagnetic compatibility are critical challenges. The EUDE suffix indicates a specific tape-and-reel packaging option suitable for automated assembly processes, distinguishing it from bulk or tube packaging variants available in the same product line.

Replacement Considerations

LT8612IUDE: Identical functional specifications with potential differences in temperature grade or packaging variant verification required.
