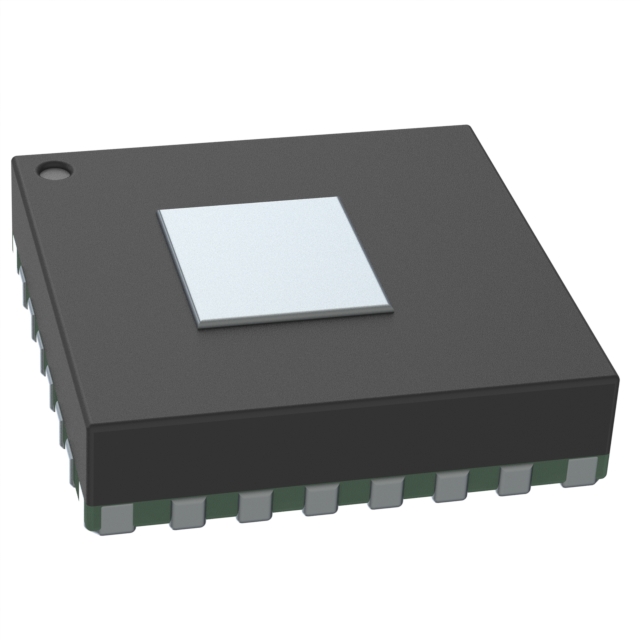

LT8625SPJV-1#TRMPBF

$10.22

Description：IC REG BUCK ADJ 8A 24LQFN
Series：Silent Switcher®3
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e2f1142dc92d Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC REG BUCK ADJ 8A 24LQFN
Series：Silent Switcher®3
Mfr：Analog Devices Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：2.7V
Voltage - Input (Max)：18V
Voltage - Output (Min/Fixed)：0V
Voltage - Output (Max)：17.5V
Current - Output：8A
Frequency - Switching：300kHz ~ 4MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：24-TFQFN Exposed Pad
Supplier Device Package：24-LQFN (4x4)
Grade：-
Qualification：-

Download product information

LT8625SPJV-1#TRMPBF

Overview

The LT8625SPJV-1#TRMPBF is a synchronous step-down switching regulator from Analog Devices, part of the Silent Switcher 3 series. It features an adjustable output voltage ranging from 0V to 17.5V with a maximum output current of 8A. The device operates with an input voltage range of 2.7V to 18V and supports a programmable switching frequency between 300kHz and 4MHz. Packaged in a 24-TFQFN exposed pad, it is designed for high-efficiency power conversion.

Feature Summary

Integrates Silent Switcher 3 technology for ultralow radiated electromagnetic interference (EMI) without external filters.
Provides high efficiency through synchronous rectification and optimized control architecture.
Features a wide operating junction temperature range suitable for demanding industrial environments.

Applications

Industrial automation systems requiring clean power delivery
Infotainment and display driver power supplies
Base station infrastructure power management

Procurement Notes

Verify component authenticity by checking the manufacturer's marking against official datasheet specifications. Confirm the package type matches the 24-LQFN (4x4) description. Ensure the suffix #TRMPBF corresponds to the correct tape and reel packaging configuration required for surface-mount assembly processes.

Selection Notes

Select this component when low EMI emissions are critical and external shielding is restricted. The adjustable output allows flexibility for various load requirements. Consider the thermal performance of the exposed pad design for heat dissipation needs in compact layouts compared to non-Silent Switcher alternatives.

Part Context

This part belongs to the LT8625 family of high-current buck regulators. It shares the core Silent Switcher 3 architecture with other variants in the series but differs in specific pinout configurations or internal reference settings defined by the JV-1 designation. It serves as a specialized solution within Analog Devices' PMIC portfolio for noise-sensitive applications.
