LT8650SEV#PBF

$13.48

Description：IC REG BUCK ADJ 4A DL 32LQFN
Series：Silent Switcher®2
Mfr：Analog Devices Inc.
Package：Tray

SKU:c298d2acb30c Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LT8650SEV#PBF is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC REG BUCK ADJ 4A DL 32LQFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LT8650SEV#PBF

Description：IC REG BUCK ADJ 4A DL 32LQFN
Series：Silent Switcher®2
Mfr：Analog Devices Inc.
Package：Tray
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：2
Voltage - Input (Min)：2.6V
Voltage - Input (Max)：42V
Voltage - Output (Min/Fixed)：0.8V
Voltage - Output (Max)：42V
Current - Output：4A
Frequency - Switching：300kHz ~ 3MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

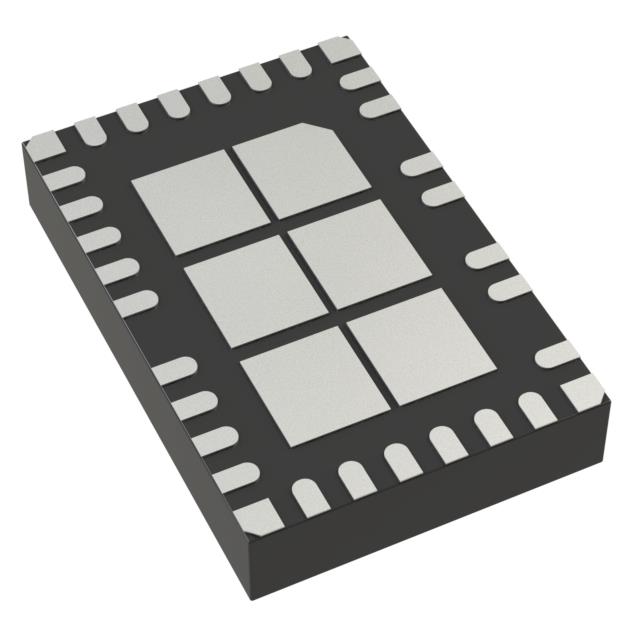

Package / Case：32-TFQFN Exposed Pad, 28 Leads
Supplier Device Package：32-LQFN (6x4)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LT8650SEV#PBF

LT8650SEV#PBF

Voltage Regulators - DC DC Switching Regulators Overview

The LT8650SEV#PBF is a dual-channel synchronous step-down Silent Switcher 2 DC-DC converter manufactured by Analog Devices. It operates with an input voltage range of 3V to 42V and provides two independent outputs, each capable of sourcing up to 4A continuous current. The device features a low quiescent current of 6.2uA and supports switching frequencies from 300kHz to 3MHz. It utilizes a 28-pin LQFN EP package and is designed for automotive applications, offering high efficiency and minimized electromagnetic interference.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates second-generation Silent Switcher technology to minimize electromagnetic interference and reduce printed circuit board layout sensitivity.
Provides dual independent output channels with individual regulation capabilities for flexible power distribution.
Supports wide input voltage ranges suitable for automotive and industrial bus architectures.

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment systems requiring isolated or regulated power rails
Industrial distributed power supply architectures
Point-of-load regulation in high-voltage input environments

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix EV against official Analog Devices documentation to confirm pinout compatibility and thermal pad specifications. Ensure the component meets required automotive qualification standards if deployed in safety-critical systems. Cross-reference datasheet revisions to validate manufacturing lot consistency and material declarations.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when dual isolated outputs are required from a single high-voltage source. Evaluate thermal performance requirements given the 4A per channel capability. Confirm that the 300kHz to 3MHz frequency range aligns with external filter constraints and system noise immunity requirements.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LT8650 family of Silent Switcher regulators. It shares architectural similarities with other devices in the series but offers specific dual-channel configuration and 4A current ratings. The EV suffix typically denotes a specific tape and reel or packaging variant within the broader product line.
