LT8653SIV#PBF

$11.04

Description：IC REG BUCK 3.3V/5V DL 20LQFN
Series：Silent Switcher®2
Mfr：Analog Devices Inc.
Package：Tray

SKU:54485410d27e Category: Voltage Regulators - DC DC Switching Regulators Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LT8653SIV#PBF is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC REG BUCK 3.3V/5V DL 20LQFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LT8653SIV#PBF

Description：IC REG BUCK 3.3V/5V DL 20LQFN
Series：Silent Switcher®2
Mfr：Analog Devices Inc.
Package：Tray
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Fixed
Number of Outputs：2
Voltage - Input (Min)：3V
Voltage - Input (Max)：42V
Voltage - Output (Min/Fixed)：3.3V, 5V
Voltage - Output (Max)：-
Current - Output：2A, 2A
Frequency - Switching：300kHz ~ 3MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount, Wettable Flank

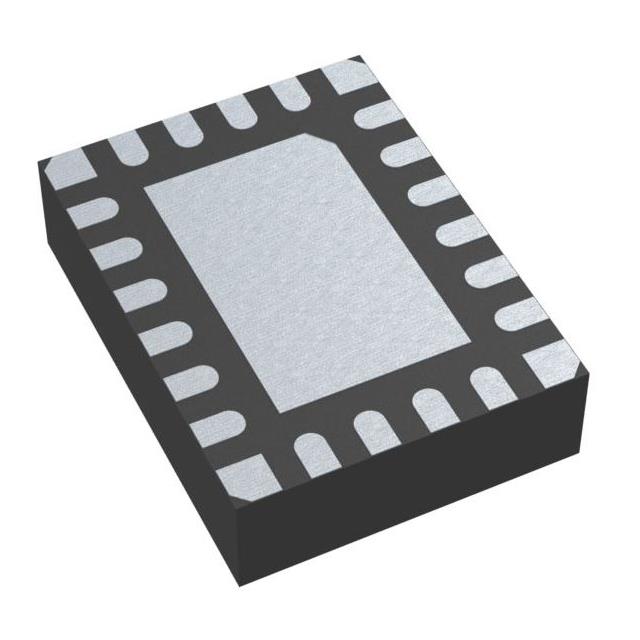

Package / Case：20-TFQFN Exposed Pad
Supplier Device Package：20-LQFN (4x3)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LT8653SIV#PBF

LT8653SIV#PBF

Voltage Regulators - DC DC Switching Regulators Overview

The LT8653SIV#PBF is a dual-channel, synchronous step-down Silent Switcher 2 regulator from Analog Devices Inc. It features an input voltage range of 3V to 42V and provides two independent non-isolated outputs with fixed voltages of 3.3V and 5V. Each channel delivers up to 2A of output current. The device operates at a switching frequency of 2MHz and utilizes the Silent Switcher 2 architecture for low EMI performance. It is housed in a 20-TFQFN package with an exposed pad.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Dual-channel synchronous buck topology providing independent regulated outputs
Silent Switcher 2 technology for optimized electromagnetic interference performance
Fixed output voltage options eliminating external feedback resistor requirements
Supports internal or external compensation for transient response optimization

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment and control systems
Industrial equipment power distribution
Computing and server infrastructure
Communication network hardware

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify that the suffix IV#PBF corresponds to the specific temperature grade and lead-free packaging configuration required for your assembly process. Confirm the 20-TFQFN pinout matches your PCB footprint design. Ensure the fixed output voltages align with downstream load requirements without modification.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when dual isolated rails are needed from a single high-voltage source. The fixed 3.3V and 5V outputs simplify design by removing feedback networks. Consider the 2A per channel limit for load sizing. The Silent Switcher 2 feature is critical for applications requiring strict EMI compliance without additional filtering components.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LT8653S family within the Silent Switcher 2 series. It complements other devices like the LT8650S and LT8652S, which offer different current capabilities. The family shares common architectural benefits including high efficiency and low EMI, tailored for various power density requirements in modern electronic systems.
