LTC3220IPF-1#TRPBF

LED Driver IC Overview

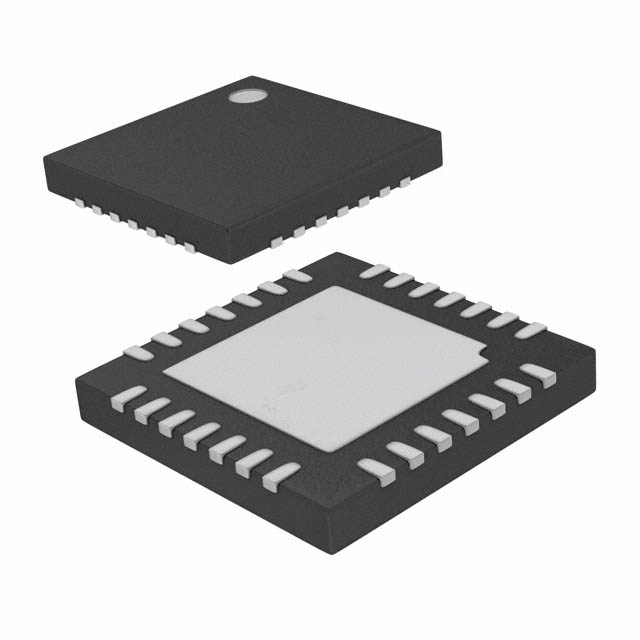

The LTC3220IPF-1#TRPBF is a highly integrated multi-display LED driver featuring an 18-channel current source architecture. It incorporates a low-noise, multi-mode charge pump capable of 1x and 2x conversion ratios to power up to 18 channels with 20mA output per channel. The device utilizes a two-wire I2C interface for independent control of each channel's on/off state, brightness level, flicker, and grayscale. Operating within a supply voltage range of 2.9V to 5.5V, it supports adjustable output voltages and functions at a switching frequency of 850kHz. The component is housed in a 28-lead UTQFN package and operates across a temperature range of -40°C to +125°C.

LED Driver IC Feature Summary

• Integrates 18 independent 20mA universal current sources for multi-display applications
• Features a low-noise multi-mode charge pump providing efficient power conversion
• Enables precise individual channel control via a standard two-wire I2C interface
• Supports 64-level linear brightness control for high-quality display performance

LED Driver IC Applications

• LED lighting systems requiring uniform current distribution
• Display backlight drivers for portable electronic devices
• Indicator circuits needing precise grayscale regulation
• Multi-zone illumination control in automotive or industrial displays

LED Driver IC Procurement Notes

Verify the specific suffix #TRPBF indicates tape-and-reel packaging when sourcing from distributors. Confirm that the part number matches the exact Analog Devices specification sheet for electrical characteristics. Ensure compatibility with I2C bus voltage levels used in the target system design. Check for any regional availability restrictions or limited stock notices associated with this specific manufacturer part number.

LED Driver IC Selection Notes

Select this component when designing systems requiring independent control of numerous LED channels without complex external logic. The integrated charge pump simplifies design by eliminating the need for external inductors or capacitors for voltage boosting. Consider the 28-lead UTQFN package size constraints during PCB layout planning. Verify that the required grayscale resolution aligns with the device's 64-level linear control capability.

LED Driver IC Part Context

This part belongs to the LTC3220 series of multi-display LED drivers manufactured by Analog Devices. It is designed specifically for applications demanding high integration and precise current regulation across multiple outputs. The series distinguishes itself through the combination of a robust charge pump and digital control interface, offering a compact solution for modern display technologies compared to discrete driver implementations.

LED Driver IC Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Analog Devices resources for cross-reference information or contact technical support for compatible alternatives.
