LTC3886EUKG#TRPBF

DC DC Switching Controllers Overview

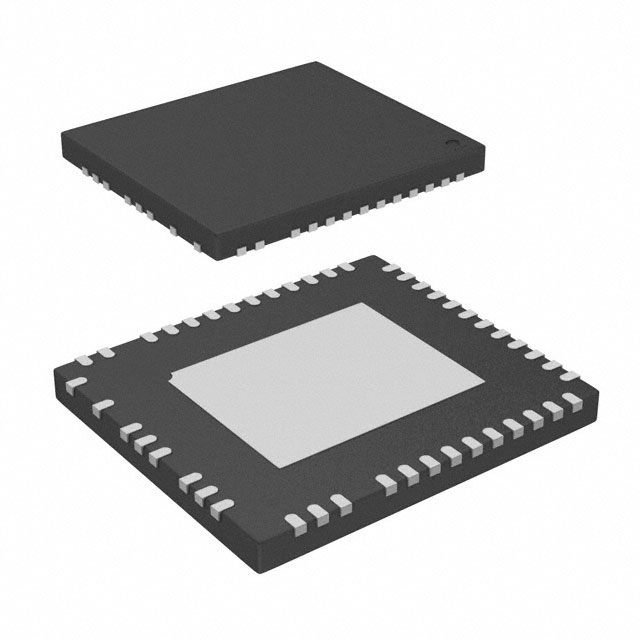

The LTC3886EUKG#TRPBF is a dual PolyPhase DC/DC synchronous step-down switching regulator controller from Analog Devices. It features an I2C-based PMBus compliant serial interface for digital power management. The device employs a constant-frequency, current-mode architecture with high voltage input and output capabilities. Key electrical specifications include an input voltage range of 4.5 V to 60 V, programmable switching frequencies between 100 kHz and 750 kHz, and support for up to 100 A output current. It operates within a temperature range of -40°C to +125°C and utilizes a QFN-52 package.

DC DC Switching Controllers Feature Summary

• Dual-channel PolyPhase architecture for synchronized multi-phase buck conversion
• Integrated DCR (DC Resistance) sensing capability for accurate current monitoring
• I2C-compatible PMBus serial interface enabling digital system management
• Programmable loop compensation and frequency control

DC DC Switching Controllers Applications

• High-efficiency dual-output step-down converter designs
• Industrial distributed power systems requiring digital control
• Telecommunications infrastructure power supplies
• Server and networking equipment power regulation

DC DC Switching Controllers Procurement Notes

Verify the specific suffix #TRPBF indicates tape-and-reel packaging when sourcing components. Confirm that the E variant meets the required operating temperature range for your application environment. Ensure compatibility with external MOSFETs selected for the intended current load. Cross-reference the datasheet revision to confirm pinout and feature consistency before finalizing procurement orders.

DC DC Switching Controllers Selection Notes

Select this controller for applications requiring independent dual outputs with high input voltage tolerance up to 60 V. The integrated DCR sense reduces component count compared to current-sense resistor methods. Consider the QFN-52 package thermal performance for high-current implementations. Verify that the target output voltage range aligns with the controller's minimum and maximum limits defined in the official specifications.

DC DC Switching Controllers Part Context

This component belongs to the LTC3886 family of dual PolyPhase controllers. It shares architectural similarities with other Analog Devices synchronous buck controllers but is distinguished by its wide input voltage range and specific PMBus integration. The part serves as a core power management IC for complex multi-rail systems requiring precise digital regulation and phase interleaving.

DC DC Switching Controllers Replacement Considerations

Direct substitutes may include other Analog Devices dual PolyPhase controllers such as the LTC3880 or LTC3883 series, provided they match the input voltage range and package footprint. Verify that alternative parts support the required PMBus protocol and DCR sensing functionality if those features are critical to the design.
