LTC6256IKC#TRPBF-ES

Instrumentation, Op Amps, Buffer Amps Overview

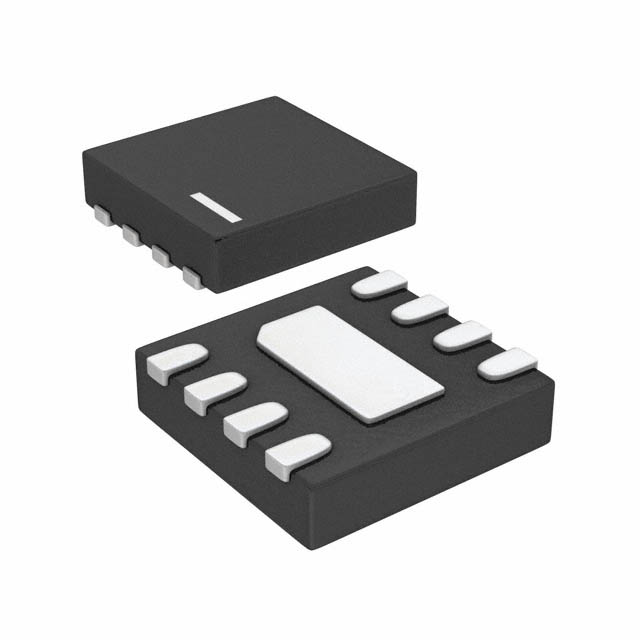

The LTC6256IKC#TRPBF-ES is a dual operational amplifier from the LTC6255 family, manufactured by Analog Devices Inc. It features a gain-bandwidth product of 6.5MHz and consumes 65µA per amplifier at supply voltages ranging from 1.8V to 5.25V. The device offers rail-to-rail input and output capabilities with a maximum offset voltage of 350µV and input bias current of 50nA. It operates within an industrial temperature range of –40°C to 85°C and is housed in an 8-lead (2mm × 2mm × 0.6mm) plastic UTDFN package.

Instrumentation, Op Amps, Buffer Amps Feature Summary

• Rail-to-rail input and output operation across the full supply voltage range
• Unity gain stability with capacitive loads up to 100nF
• Low quiescent current consumption of 65µA per amplifier
• Shutdown capability reducing current to less than 7µA

Instrumentation, Op Amps, Buffer Amps Applications

• Micropower active filters
• Portable instrumentation
• Battery or solar powered systems
• Automotive electronics

Instrumentation, Op Amps, Buffer Amps Procurement Notes

Verify the specific suffix '-ES' against official manufacturer documentation to confirm engineering sample status or special handling requirements. Ensure the ordering part number matches the exact package type and temperature grade specified in the datasheet. Confirm lead-free finish compliance if required for assembly processes.

Instrumentation, Op Amps, Buffer Amps Selection Notes

Select this component for applications requiring low power consumption combined with high bandwidth. The dual configuration is suitable for differential signal processing. Verify that the 6.5MHz gain-bandwidth product meets system speed requirements. Consider the shutdown feature for battery-powered designs requiring extended standby modes.

Instrumentation, Op Amps, Buffer Amps Part Context

This part belongs to the LTC6255/LTC6256/LTC6257 family of precision amplifiers. The 'I' designation indicates an industrial temperature range of –40°C to 85°C. The 'KC' suffix specifies the 8-lead UTDFN package. The '#TRPBF' indicates tape and reel packaging with lead-free finish. The '-ES' suffix typically denotes an engineering sample.
