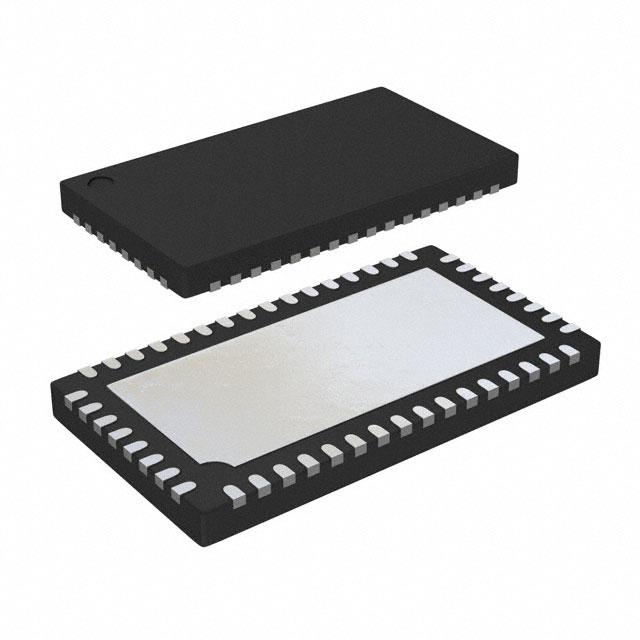

LTC6950IUHH

Clock Generators, PLLs, Frequency Synthesizers Overview

The LTC6950IUHH is a low noise, integer-N phase-locked loop (PLL) clock generator manufactured by Analog Devices. It features five independent output dividers capable of generating frequencies up to 1 GHz. The device operates on a single 3.3 V supply with a typical current consumption of 45 mA. It utilizes an I2C-compatible serial interface for configuration and includes an integrated charge pump. The component is housed in a compact 24-lead LQFP package and supports operation across an industrial temperature range of -40°C to +85°C.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Five independent output dividers supporting frequencies up to 1 GHz
• Integrated low-noise charge pump and voltage-controlled oscillator (VCO)
• I2C-compatible serial control interface for register programming
• Single 3.3 V power supply operation with 45 mA typical current draw

Clock Generators, PLLs, Frequency Synthesizers Applications

• Clock distribution for high-speed data converters
• Jitter attenuation in communication systems
• Test and measurement equipment timing references
• Fiber optic transceiver clock generation

Clock Generators, PLLs, Frequency Synthesizers Part Context

The LTC6950 belongs to the LTC695x family of programmable clock generators designed for applications requiring precise frequency synthesis with minimal added jitter. This specific variant, the LTC6950IUHH, denotes the industrial temperature grade (-40°C to +85°C) and the 24-lead LQFP package. It serves as a foundational component for creating stable clock trees in complex digital systems where multiple synchronized frequencies are required from a single reference source.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

Public documentation identifies the DC1795A as a demonstration board associated with the LTC6950 series. No direct pin-to-pin replacement part numbers are explicitly listed in the provided source material for this specific model.
