LTCS10.7MS3-TR

Overview

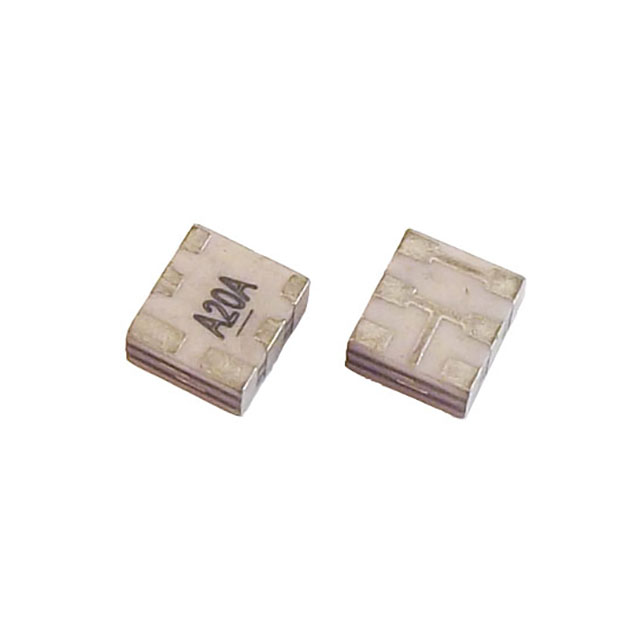

The LTCS10.7MS3-TR is a ceramic band-pass filter manufactured by Transko Electronics, Inc., designed for precise frequency selection in electronic circuits. Operating at a center frequency of 10.7MHz, this component provides a bandwidth of 180 kHz with an impedance of 330 Ohms. It is housed in a compact 4-SMD, No Lead package and supplied in Tape & Reel (TR) format to facilitate automated surface-mount assembly processes.

Feature Summary

• Small volume, weight, and low profile design
• Automatic assembly compatibility

Applications

• FM radio receiver front ends
• Intermediate frequency (IF) filtering stages
• Communication equipment signal processing

Procurement Notes

Verify the specific suffix 'TR' indicates tape-and-reel packaging when ordering. Confirm the 180 kHz bandwidth specification matches the circuit requirements rather than the 230 kHz variant found in similar series listings. Ensure the 4-SMD no-lead footprint aligns with the PCB layout design before finalizing procurement.

Selection Notes

Select this component for applications requiring a 10.7MHz center frequency with a 180 kHz passband. The 330 Ohm impedance must match the source and load impedances of the connected circuitry. Consider the SMD package type for space-constrained designs requiring automated placement.

Part Context

This part belongs to the LTCS series of ceramic filters from Transko Electronics. These components are engineered for high stability and consistent performance in narrowband applications. The series offers various bandwidth options while maintaining a standardized form factor for easy integration into existing designs.

Replacement Considerations

LTCA10.7MS3 is a related variant within the same manufacturer's lineup. Verify if the alternative requires a different impedance or bandwidth specification before substitution.
