LTCV10.7MJ

Overview

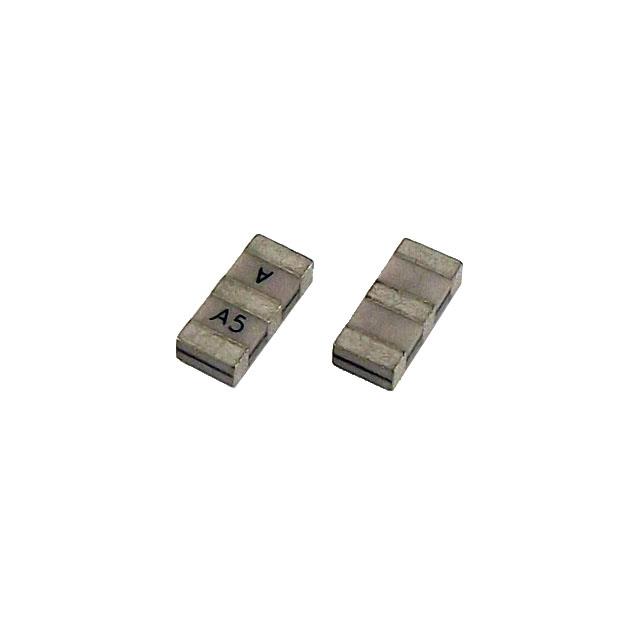

The LTCV10.7MJ is a ceramic band-pass filter manufactured by Transko Electronics, Inc., designed for operation at a center frequency of 10.7 MHz. It features a bandwidth of 150 kHz and an impedance of 330 Ohms. The component utilizes a 3-SMD, no-lead surface-mount package configuration. This device is engineered to isolate specific signal frequencies while attenuating unwanted spectral components in electronic circuits.

Feature Summary

• Provides precise frequency isolation at the 10.7 MHz center point
• Utilizes a compact surface-mount package for automated assembly
• Designed for high selectivity with a defined 150 kHz bandwidth

Applications

• Intermediate frequency stages in FM radio receivers
• Signal processing circuits requiring 10.7 MHz filtering
• Communication equipment utilizing standard IF frequencies

Procurement Notes

Verify the exact datasheet specifications from Transko Electronics, Inc. before integration. Confirm that the 3-SMD package dimensions align with your PCB footprint design. Ensure compatibility with your manufacturing process for leadless surface-mount components. Cross-reference the 150 kHz bandwidth requirement with your system's signal integrity needs.

Selection Notes

Select this component when a fixed 10.7 MHz ceramic filter is required for intermediate frequency applications. The 330 Ohm impedance must match the source and load requirements of the circuit design. Consider the 150 kHz bandwidth relative to the desired signal width. The surface-mount form factor is suitable for space-constrained designs.

Part Context

This part belongs to the family of ceramic filters produced by Transko Electronics, Inc. These components are specialized passive devices used primarily in analog signal processing. The 10.7 MHz designation indicates its target application in broadcast and communication standards where this specific intermediate frequency is prevalent.

Replacement Considerations

LTCS10.7MS3 is a documented alternative within the same manufacturer's lineup. Verify pinout compatibility and electrical parameters before substitution.
