LTL-1CHAE

LED Indication - Discrete Overview

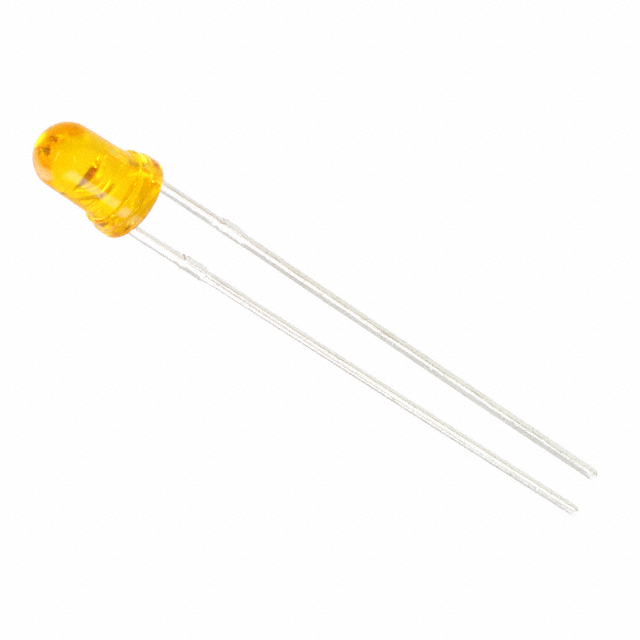

The LTL-1CHAE is a single-color LED from Lite-On, featuring an amber transparent lens with a round domed top. It operates at a typical forward voltage of 2.1V and a test current of 20mA. The device emits light with a millicandela rating of 29mcd. Physical dimensions include a 3.10mm diameter lens and a total length of 3.8mm. Operating temperatures range from -55°C to +100°C.

LED Indication - Discrete Feature Summary

• Amber transparent lens design for clear visual indication
• Low power consumption characteristics suitable for battery-operated devices
• Robust thermal performance with high maximum operating temperature

LED Indication - Discrete Applications

• Panel indicator lights
• Status indication in consumer electronics
• Control panel signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the official Lite-On datasheet to ensure correct binning and optical specifications. Confirm package compatibility with PCB footprint requirements. Check for recent product change notices affecting material composition or manufacturing location. Ensure RoHS compliance status matches project requirements.

LED Indication - Discrete Selection Notes

Select this component when amber color indication is required with moderate brightness levels. Consider the 2.1V forward voltage drop for circuit design efficiency. Evaluate the 3.10mm lens size against available panel space constraints. Compare thermal limits against expected ambient operating conditions.

LED Indication - Discrete Part Context

This part belongs to the LTL-1CHAE series of single-color LEDs manufactured by Lite-On Technology Corporation. The series focuses on standard through-hole LED packages optimized for general-purpose indication. It represents a mature product line within Lite-On's visible optoelectronics portfolio.

LED Indication - Discrete Replacement Considerations

Cross-reference with LTL-1CHYE-0G1ABINO3 for yellow alternatives. Verify mechanical pin spacing and electrical parameters before substitution. Consult official replacement lists for discontinued variants.
