LTL1CHTBK5

$0.17

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk

SKU:d3be67ee045a Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTL1CHTBK5 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED BLUE CLEAR T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTL1CHTBK5

Description：LED BLUE CLEAR T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：880mcd
Lens Style：Round with Domed Top
Lens Size：3.10mm Dia
Voltage - Forward (Vf) (Typ)：3.5V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Through Hole
Wavelength - Dominant：470nm
Wavelength - Peak：468nm
Features：-
Package / Case：Radial
Supplier Device Package：-
Size / Dimension：-
Height (Max)：5.20mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTL1CHTBK5

LTL1CHTBK5

LED Indication - Discrete Overview

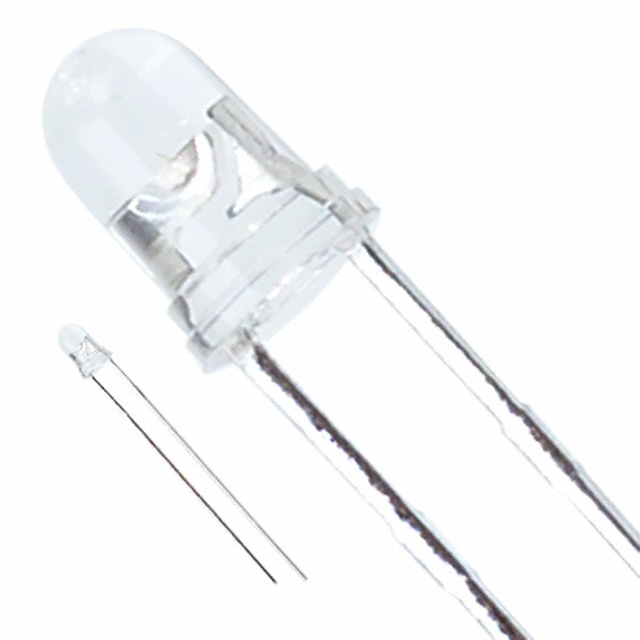

The LTL1CHTBK5 is a through-hole LED lamp manufactured by Lite-On Inc. It features a 3mm lens with a colorless finish and emits blue light at a wavelength of 468nm. The component operates with a forward current of 20mA and exhibits a forward voltage of 3.5V. It delivers a luminous intensity of 880mcd with a viewing angle of 30 degrees. The maximum height is 5.20mm, and the power rating is 120mW.

LED Indication - Discrete Feature Summary

Low profile design with flat lens for wide-angle indication
High luminous intensity output in blue spectrum
Standard through-hole mounting configuration

LED Indication - Discrete Applications

Panel indicator lights
Electronic device status signaling
Control board illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lite-On documentation to confirm exact optical and electrical characteristics. Ensure compatibility with existing PCB layouts regarding lead spacing and thermal requirements. Cross-reference datasheet parameters for forward voltage and intensity to match circuit design specifications accurately before procurement.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact 3mm form factor with high visibility. Consider the 30-degree viewing angle for focused indication needs. Evaluate the 3.5V forward voltage drop for power supply compatibility. Confirm mechanical fit within the enclosure constraints due to the 5.20mm maximum height specification.

LED Indication - Discrete Part Context

This part belongs to Lite-On's discrete LED indication family, specifically designed for through-hole assembly. It represents a standard solution for visual feedback in electronic systems. The product line emphasizes reliability and consistent optical performance across various industrial and consumer electronics applications.
