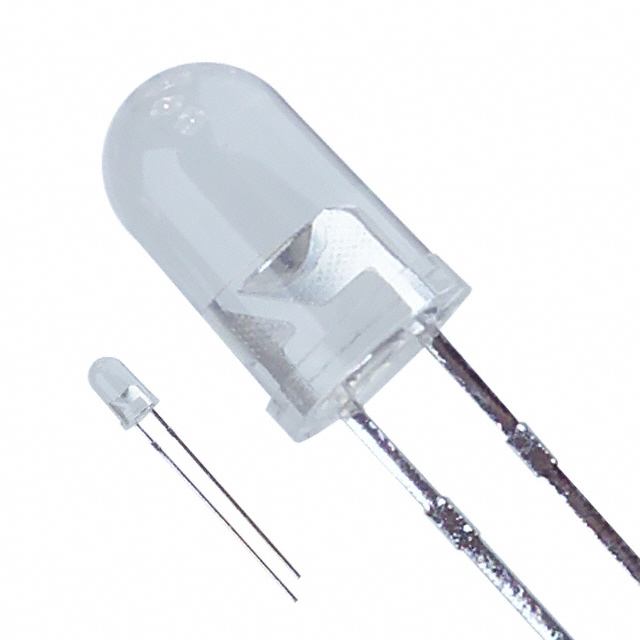

LTL2R3TGY3KS

$0.39

Description：LED GREEN CLEAR T-1 3/4 T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk

SKU:00c6df593395 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTL2R3TGY3KS is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED GREEN CLEAR T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTL2R3TGY3KS

Description：LED GREEN CLEAR T-1 3/4 T/H
Series：-
Mfr：Lite-On Inc.
Package：Bulk
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：11900mcd
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：3.05V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Through Hole
Wavelength - Dominant：529nm
Wavelength - Peak：531nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：12.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTL2R3TGY3KS

LTL2R3TGY3KS

LED Indication - Discrete Overview

The LTL2R3TGY3KS is a green light-emitting diode manufactured by Lite-On Inc. It features a water-clear lens with a dominant wavelength of 529nm and a peak wavelength of 531nm. The component operates at a typical forward voltage of 3.05V and offers a luminous intensity ranging from 7800 to 16000 mcd. It utilizes a T-1 3/4 (4.8mm) radial package designed for through-hole mounting. The device provides a narrow viewing angle of 30 degrees, ensuring focused light emission suitable for indicator applications.

LED Indication - Discrete Feature Summary

High-intensity green light emission with superior brightness levels
Water-clear lens design for efficient light transmission
Narrow beam distribution optimized for directional visibility

LED Indication - Discrete Applications

Panel status indicators
Equipment power state signaling
Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official Lite-On documentation to ensure correct optical characteristics. Confirm that the required luminous intensity range aligns with system design specifications. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the through-hole footprint matches the target PCB layout dimensions.

LED Indication - Discrete Selection Notes

Select this component when high visibility in a specific direction is required. The narrow viewing angle distinguishes it from wide-angle alternatives. Consider the higher forward voltage drop compared to red LEDs during circuit design. Evaluate the mechanical stability of the T-1 3/4 package for vibration-prone environments.

LED Indication - Discrete Part Context

This part belongs to the LTL series of discrete LEDs from Lite-On. The series includes various colors and package sizes. The T-1 3/4 form factor is a standard size for general-purpose indicators. This specific model focuses on green spectrum performance with enhanced brightness capabilities.
