LTM9006IY-14#PBF

$66.26

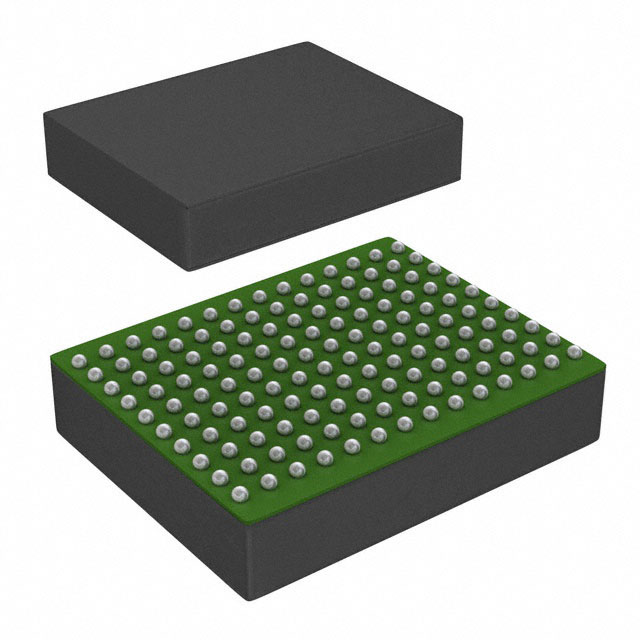

Description：IC ADC 14BIT PIPELINED 140BGA
Series：-

SKU:797e7737b851 Category: Analog to Digital Converters (ADC) Brand: Analog Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTM9006IY-14#PBF is listed in the Analog To Digital Converters (ADC) range at ChipApex. The manufacturer field lists Analog Devices Inc.. Its product description is IC ADC 14BIT PIPELINED 140BGA. Review the specifications below when checking this part for your BOM.

Analog To Digital Converters (ADC) specifications for LTM9006IY-14#PBF

Description：IC ADC 14BIT PIPELINED 140BGA
Series：-
Mfr：Analog Devices Inc.
Package：Tray
Number of Bits：14
Sampling Rate (Per Second)：25M
Number of Inputs：8
Input Type：Differential
Data Interface：LVDS - Serial
Configuration：S/H-ADC
Ratio - S/H:ADC：1:01
Number of A/D Converters：8
Architecture：Pipelined
Reference Type：External, Internal
Voltage - Supply, Analog：1.7V ~ 1.9V
Voltage - Supply, Digital：1.7V ~ 1.9V
Features：Simultaneous Sampling
Operating Temperature：-40°C ~ 85°C
Package / Case：140-BFBGA
Supplier Device Package：140-BGA (11.25x9)
Mounting Type：Surface Mount
Grade：-
Qualification：-

Analog To Digital Converters (ADC) datasheet and documents for LTM9006IY-14#PBF

LTM9006IY-14#PBF

Analog To Digital Converters (ADC) Overview

The LTM9006IY-14#PBF is an 8-channel, simultaneous sampling 14-bit analog-to-digital converter (ADC) operating at a maximum sample rate of 25Msps. It features serial LVDS outputs and operates on a single 1.8V supply. Key performance metrics include a typical Signal-to-Noise Ratio (SNR) of 73dB and a Spurious Free Dynamic Range (SFDR) of 90dB. The device integrates bypass capacitance and offers selectable input ranges from 1VP-P to 2VP-P. Power consumption per channel is 46mW, with pipeline latency of 6 cycles.

Analog To Digital Converters (ADC) Feature Summary

8-Channel Simultaneous Sampling ADC
14-Bit Resolution with No Missing Codes
Serial LVDS Outputs (1 or 2 Bits per Channel)
Internal Bypass Capacitance

Analog To Digital Converters (ADC) Applications

Communications
Cellular Base Stations
Software Defined Radios
Portable Medical Imaging
Multichannel Data Acquisition

Analog To Digital Converters (ADC) Procurement Notes

Verify the specific speed grade suffix '6' corresponds to the 25Msps variant. Confirm the 'IY' designation indicates the industrial temperature range (-40°C to 85°C). Ensure the '#PBF' suffix matches the required lead-free tray packaging specifications for the target application.

Analog To Digital Converters (ADC) Selection Notes

Select this component when an 8-channel configuration with 25Msps throughput is required. Compare against LTM9007-14 (40Msps) or LTM9008-14 (65Msps) if higher sampling rates are needed. Verify that the 1.8V single-supply architecture aligns with system power constraints.

Analog To Digital Converters (ADC) Part Context

This part belongs to the LTM9006-14 family within the LTM® octal ADC series. It shares architectural similarities with the LTM9007-14 and LTM9008-14, differentiated primarily by maximum sampling frequency. All variants utilize the same 140-lead BGA package and pinout.
