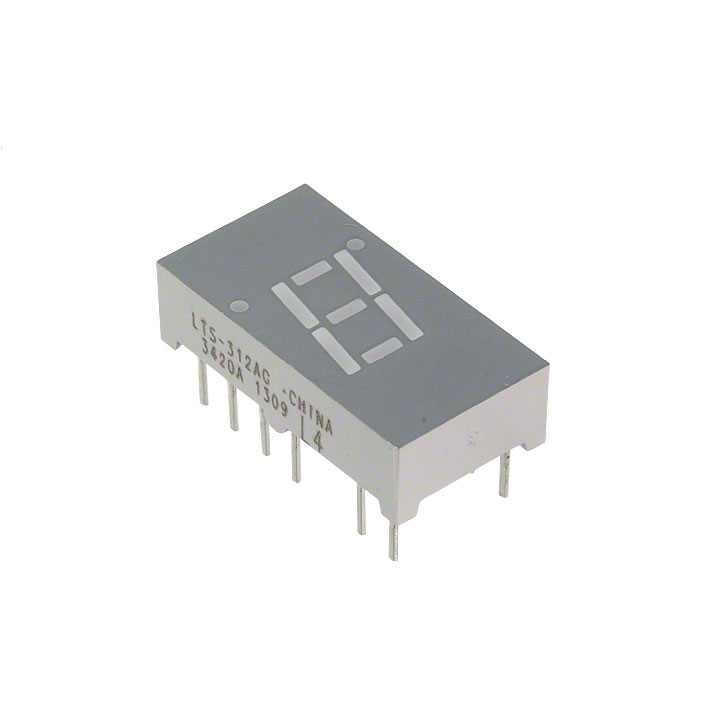

LTS-312AG

LTS-312AG is listed in the LED Character And Numeric range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is DISPLAY 7SEG 0.3" SGL GRN 14DIP. Review the specifications below when checking this part for your BOM.

LED Character And Numeric specifications for LTS-312AG

• Description：DISPLAY 7SEG 0.3" SGL GRN 14DIP
• Series：-
• Mfr：Lite-On Inc.
• Package：Tube
• Number of Characters：1
• Size / Dimension：0.738" H x 0.388" W x 0.200" D (18.75mm x 9.85mm x 5.08mm)
• Digit/Alpha Size：0.30" (7.62mm)
• Display Type：7-Segment
• Common Pin：Common Anode
• Color：Green
• Voltage - Forward (Vf) (Typ)：2.1V
• Current - Test：20mA
• Millicandela Rating：2mcd
• Wavelength - Peak：565nm
• Power Dissipation (Max)：75mW
• Package / Case：14-DIP (0.300", 7.62mm), 11 Leads

LED Character And Numeric datasheet and documents for LTS-312AG
