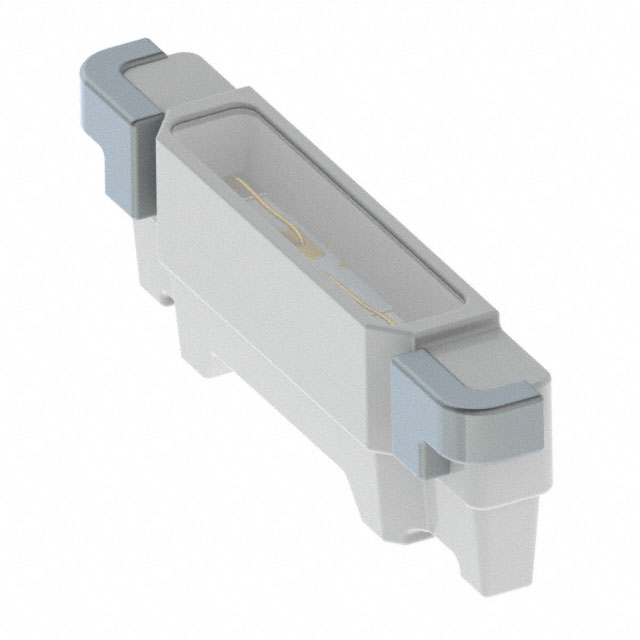

LTST-020TBKT

$0.27

Description：LED BLUE CLEAR SMD R/A
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d63bbae3cf2c Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-020TBKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED BLUE CLEAR SMD R/A. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-020TBKT

Description：LED BLUE CLEAR SMD R/A
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Blue
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：157mcd
Lens Style：Rectangle with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：470nm
Wavelength - Peak：468nm
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：-
Size / Dimension：3.80mm L x 1.20mm W
Height (Max)：0.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-020TBKT

LTST-020TBKT

LED Indication - Discrete Overview

The LTST-020TBKT is a single-color surface-mount LED manufactured by Lite-On Inc., designed for side-view illumination applications. It emits blue light with a peak wavelength of 475 nm and utilizes a water-clear, colorless rectangular lens. The component operates at a forward current of 20 mA with a typical forward voltage of 3.8 V, resulting in a power rating of 80 mW. It delivers an optical intensity of 224 mcd and features a PLCC-2 package with a height of 0.6 mm.

LED Indication - Discrete Feature Summary

Side-view emission configuration for direct visibility
Water-clear rectangular lens design
Standard PLCC-2 surface-mount packaging

LED Indication - Discrete Applications

Indicator lighting for electronic devices
Status indication on control panels
Backlighting components requiring side visibility

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm exact binning classifications for luminous intensity and chromaticity coordinates. Ensure that the ordering suffix matches the required tape-and-reel packaging format. Cross-reference the manufacturer's latest environmental compliance documentation to confirm RoHS status prior to final procurement authorization.

LED Indication - Discrete Selection Notes

Select this component when a low-profile side-emitting blue LED is required for compact assemblies. The PLCC-2 package facilitates standard SMT placement processes. Consider the 0.6 mm height constraint against available board clearance. Evaluate the 224 mcd output against ambient lighting conditions to ensure adequate visibility without excessive drive current.

LED Indication - Discrete Part Context

This part belongs to the LTST series of single-color LEDs from Lite-On Inc. The series offers various form factors including top-view and side-view options across multiple colors. The LTST-020TBKT specifically addresses needs for low-height, side-emitting blue indicators within the broader portfolio of surface-mount optoelectronic components.
