LTST-C150EKT

LED Indication - Discrete Overview

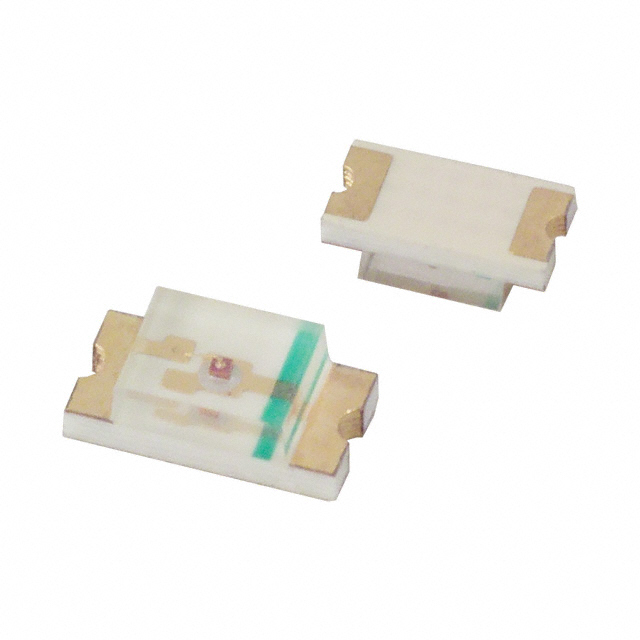

The LTST-C150EKT is a single-color surface-mount LED manufactured by Lite-On Inc. in the 1206 (3216 metric) package. It emits red light with a wavelength of approximately 630 nm and features a water-clear rectangular lens measuring 2.06 mm x 1.60 mm. The component operates at a forward current of 10 mA, producing a typical luminous intensity of 6 mcd. Electrical characteristics include a forward voltage of 2 V to 2.6 V. It supports a viewing angle of 130 degrees and functions within a temperature range of -20°C to +80°C.

LED Indication - Discrete Feature Summary

• Surface-mount construction in a compact 1206 package for automated assembly
• Water-clear rectangular lens design providing a wide 130-degree viewing angle
• Compatible with standard IC logic levels due to low forward voltage requirements

LED Indication - Discrete Applications

• Panel indicator lights for electronic equipment
• Status indication on consumer appliances
• Backlighting for control buttons and switches

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from Lite-On Technology Corporation to confirm exact binning classifications and optical consistency. Ensure that the ordering suffix matches the required packaging format, such as tape and reel quantities. Cross-reference electrical parameters against the latest official specification sheet to guarantee compliance with target circuit designs before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator is required for space-constrained printed circuit boards. The 1206 footprint offers a balance between visibility and board density. Consider the 2V forward voltage drop when designing series resistor networks or direct drive circuits to ensure proper current limiting and optimal brightness performance under varying supply conditions.

LED Indication - Discrete Part Context

This part belongs to the LTST-C150 series of single-color chip LEDs produced by Lite-On. The series utilizes standard surface-mount technology compatible with reflow soldering processes. The C150 designation typically indicates the physical dimensions and lens style, while the suffix denotes specific color and packaging variations within the product line.

LED Indication - Discrete Replacement Considerations

LTST-C150TBKT

LED Indication - Discrete FAQ

What is the typical forward voltage for the LTST-C150EKT?

The typical forward voltage is 2V, with a maximum rating often cited around 2.6V at the test current.

Does this LED have a moisture sensitivity level?

Yes, the component is sensitive to moisture and should be handled according to standard pre-reflow drying guidelines if stored beyond factory limits.
