LTST-C150KGKT

LED Indication - Discrete Overview

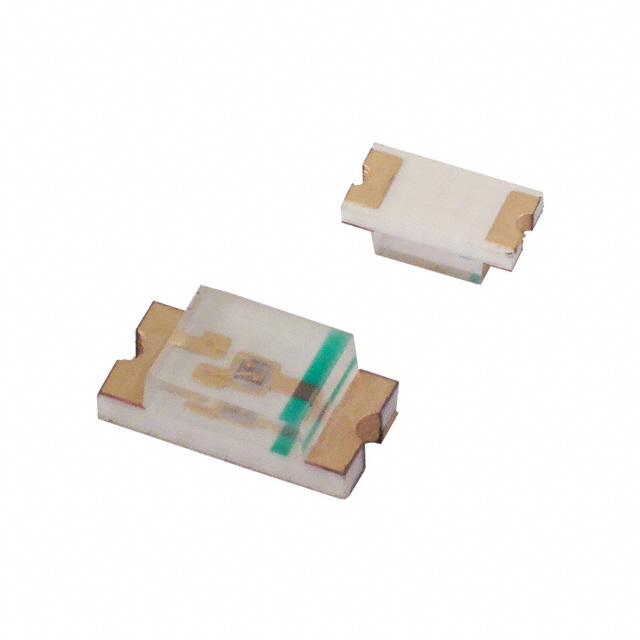

The LTST-C150KGKT is a single-color green surface-mount LED manufactured by Lite-On Inc. It features a water-clear rectangular lens and emits light at a peak wavelength of 571 nm. The component operates with a forward current of 20 mA and a typical forward voltage of 3.2 V, resulting in a power rating of 76 mW. It provides an optical intensity of 150 mcd and offers a viewing angle of 130 degrees. The device is housed in a 1206 (3216 metric) package measuring 3.2 mm in length, 1.6 mm in width, and 1.1 mm in height.

LED Indication - Discrete Feature Summary

• Features a water-clear rectangular lens for consistent light transmission
• Provides a wide 130-degree viewing angle for broad visibility
• Designed for standard surface-mount technology (SMD/SMT) assembly

LED Indication - Discrete Applications

• General indicator lighting on electronic circuit boards
• Status indication in consumer electronic devices
• Panel status indicators for control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'KT' to confirm the tape and reel packaging configuration intended for automated pick-and-place manufacturing processes. Ensure that the procurement documentation explicitly references the 1206 package dimensions and the 571 nm peak wavelength to match design requirements. Confirm RoHS compliance status through official manufacturer datasheets prior to finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with high brightness is required for general-purpose applications. The 1206 footprint allows for compact board layouts while maintaining adequate thermal dissipation characteristics. Consider the 130-degree viewing angle if wide-area visibility is necessary compared to narrower beam components.

LED Indication - Discrete Part Context

This part belongs to the LTST-C150 series of single-color LEDs from Lite-On Inc., which are designed for surface-mount applications. The series utilizes standard semiconductor materials to produce specific visible wavelengths. The LTST-C150KGKT specifically targets the green spectrum within this standardized product line.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
