LTST-C170KAKT

LED Indication - Discrete Overview

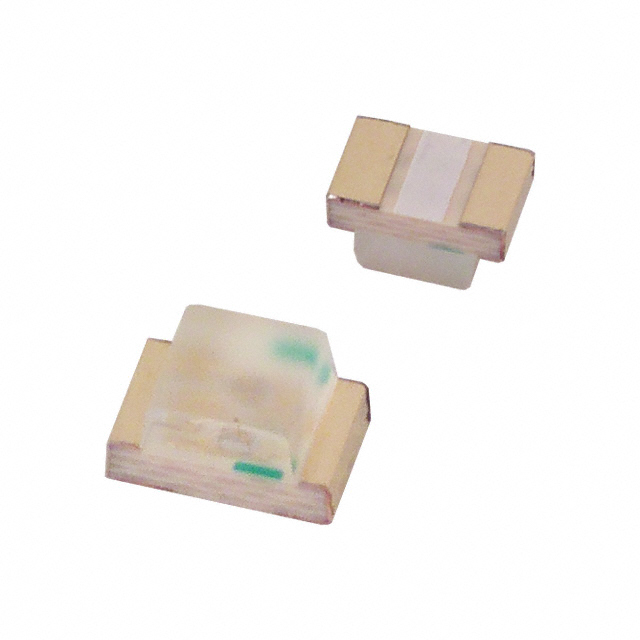

The LTST-C170KAKT is a single-color orange LED from Lite-On Inc., designed for surface mount technology in the 0805 (2012 metric) package. It emits light at a peak wavelength of 615 nm with a luminous intensity of 55 mcd. The component operates with a forward current of 20 mA and a forward voltage of 2 V, featuring a power rating of 75 mW. It utilizes a water-clear rectangular lens measuring 1.4 mm x 1.1 mm and offers a viewing angle of 130 degrees. The device supports an operating temperature range from -55°C to +85°C and includes moisture sensitivity classification.

LED Indication - Discrete Feature Summary

• Surface mount construction within a compact 0805 footprint
• Water-clear rectangular lens for optimized light transmission
• Wide angular visibility supporting broad indicator applications

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Panel-mounted equipment status indicators
• Consumer appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix KT against official Lite-On documentation to confirm reel packaging specifications and tape dimensions. Ensure compliance with RoHS directives and REACH regulations as stated in the manufacturer datasheet. Confirm moisture sensitivity level handling requirements during storage and assembly processes to prevent damage. Cross-reference the part number with authorized distributors to validate authenticity and traceability before procurement.

LED Indication - Discrete Selection Notes

Select this component when an orange indicator is required in a standard 0805 SMD form factor. Consider the 2V forward voltage drop for appropriate driver circuit design. Evaluate the 55 mcd intensity against ambient lighting conditions to ensure adequate visibility. Verify that the 75 mW power rating aligns with thermal management capabilities within the target enclosure or system layout.

LED Indication - Discrete Part Context

This part belongs to the LTST-C170 series of single-color LEDs manufactured by Lite-On Inc. The series provides various color options including red, green, yellow, and blue within the same mechanical footprint. This specific model represents the orange variant, maintaining consistent dimensional standards across the family for automated pick-and-place compatibility.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Lite-On documentation or authorized distributor databases for cross-reference information.
