LTST-C195KGJEKT

LED Indication - Discrete Overview

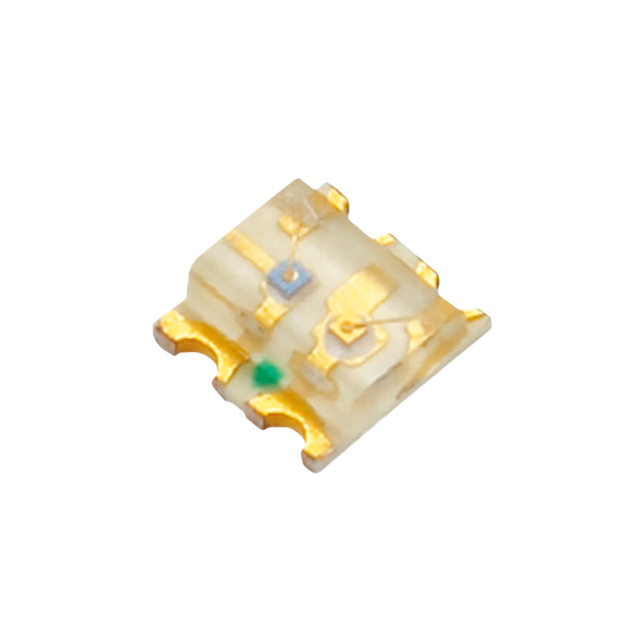

The LTST-C195KGJEKT is a dual-color surface-mount LED manufactured by Lite-On Inc., featuring green and red AlInGaP chips within a 0605 (1.6 mm x 1.5 mm) rectangular package. It emits at wavelengths of 571 nm (green) and 631 nm (red) with a viewing angle of 130 degrees for both colors. The component operates with a forward current of 20 mA per chip and a forward voltage of 2 V, rated for a power dissipation of 75 mW. Optical intensities are specified at 45 mcd for green and 35 mcd for red. It functions reliably between -55°C and +85°C.

LED Indication - Discrete Feature Summary

• Dual-color configuration utilizing separate AlInGaP chips for independent green and red emission control.
• Water-clear colorless lens provides high transparency and consistent light transmission.
• Compatible with standard infrared and vapor phase reflow soldering processes for automated assembly.

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer appliances
• Panel indicators for industrial equipment

LED Indication - Discrete Procurement Notes

Verify the specific suffix JEKT to confirm the Green/Red color combination and wavelength specifications. Ensure compatibility with RoHS directives as indicated in official documentation. Confirm moisture sensitivity handling requirements during storage and assembly to prevent package damage. Cross-reference datasheet parameters against design constraints before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact 0605 footprint is required for dual-state visual feedback. Consider the 130-degree viewing angle for broad visibility applications. Evaluate the 20 mA drive current requirement against available GPIO capabilities. Verify that the 2 V forward voltage aligns with the system's logic levels or requires series resistance calculation.

LED Indication - Discrete Part Context

This part belongs to the LTST-C195 series of bi-color LEDs from Lite-On. The series offers various color combinations in a standardized miniature SMD package designed for high-density PCB mounting. The C195 designation indicates the specific physical dimensions and lead frame configuration common across multiple color variants in this product line.

LED Indication - Discrete Replacement Considerations

LTST-C195KGJRKT is a similar dual-color variant within the same series. Verify pinout compatibility and exact wavelength tolerances before substitution. Other C195 models may share the physical package but differ significantly in optical output and electrical characteristics.
