LTST-C19HE1WT

LED Indication - Discrete Overview

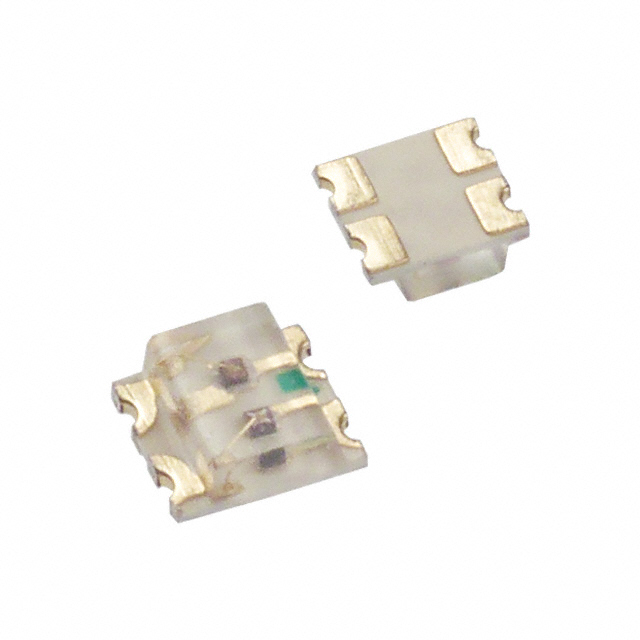

The LTST-C19HE1WT is a multi-color RGB LED manufactured by Lite-On Inc. It features a surface-mount 0606 (1.6mm x 1.6mm) package with a height of 0.34 mm. The component emits red light at 624 nm, green at 525 nm, and blue at 470 nm. It utilizes a diffused colorless rectangular lens providing a 130-degree viewing angle. Electrical parameters include a forward current of 20 mA, with forward voltages of 2.4 V for red and 3.9 V for both green and blue channels. Power ratings are specified as 75 mW for the red channel and 80 mW for the green and blue channels. Light intensities are rated at 180 mcd for red and blue, and 450 mcd for green. The device operates within a temperature range of -20 C to +80 C.

LED Indication - Discrete Feature Summary

• Integrates three distinct semiconductor chips for red, green, and blue emission within a single compact surface-mount package.
• Utilizes a diffused lens design to provide uniform light distribution across a wide 130-degree viewing angle.
• Constructed with a low-profile rectangular housing suitable for automated surface-mount assembly processes.

LED Indication - Discrete Applications

• RGB indicator lighting in consumer electronics
• Status indication in portable devices
• Backlighting applications requiring mixed color output

LED Indication - Discrete Procurement Notes

Verify that the specific ordering suffix matches the required wavelength and intensity specifications from the manufacturer datasheet. Confirm moisture sensitivity level handling requirements during storage and soldering. Ensure the procurement source provides valid RoHS compliance documentation consistent with the component's environmental standards.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution is required for space-constrained designs. Consider the specific forward voltage differences between channels for driver circuit design. Evaluate the light intensity requirements against the 180 mcd and 450 mcd ratings to ensure adequate visibility for the intended application.

LED Indication - Discrete Part Context

This part belongs to the LTST-C19 series of multi-color LEDs produced by Lite-On Inc. The series offers various configurations for different color combinations and package sizes. The C19 designation typically refers to the specific footprint and dimensional constraints of the surface-mount package used in this component family.

LED Indication - Discrete Replacement Considerations

LTST-C19FD1WT
