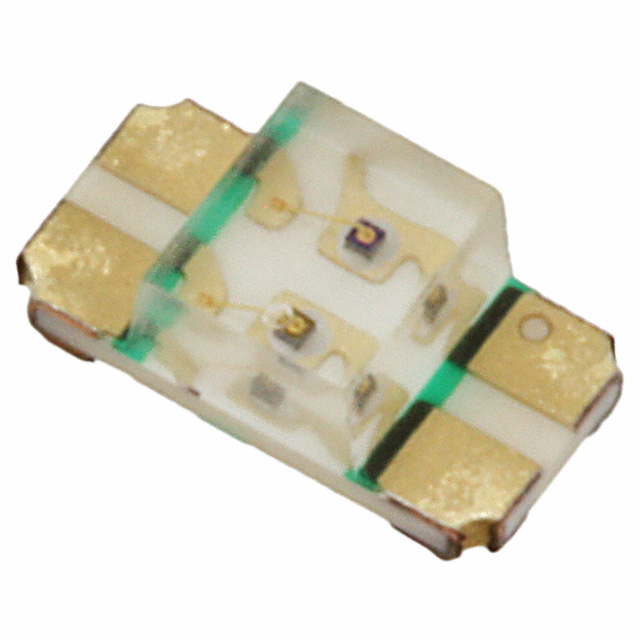

LTST-C235KGKRKT

$0.25

Description：LED GREEN/RED CLEAR CHIP SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c7407c162de7 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-C235KGKRKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED GREEN/RED CLEAR CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-C235KGKRKT

Description：LED GREEN/RED CLEAR CHIP SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green, Red
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：35mcd Green, 45mcd Red
Lens Style：Rectangle with Flat Top
Lens Size：1.50mm x 1.60mm
Voltage - Forward (Vf) (Typ)：2V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：130°
Mounting Type：Surface Mount, Bottom Entry
Wavelength - Dominant：571nm Green, 631nm Red
Wavelength - Peak：574nm Green, 639nm Red
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：Chip LED
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-C235KGKRKT

LTST-C235KGKRKT

LED Indication - Discrete Overview

The LTST-C235KGKRKT is a dual-color surface-mount LED manufactured by Lite-On Inc. It features a green and red color combination within a 1206 (3216 metric) package. The component operates with a forward current of 20 mA, utilizing a typical forward voltage of 2.1 V for the green element and 2 V for the red element. The power rating is specified at 75 mW. It emits light at wavelengths of 569 nm (green) and 631 nm (red), with optical intensities of 14 mcd and 54 mcd respectively. The device offers a viewing angle of 130 degrees and includes a water-clear rectangular lens.

LED Indication - Discrete Feature Summary

Dual-color configuration combining green and red emission sources in a single SMD package
Water-clear rectangular lens design providing a wide 130-degree viewing angle
Standard 1206 surface-mount footprint suitable for automated assembly processes

LED Indication - Discrete Applications

Status indication for electronic equipment panels
Bi-color signaling in industrial control systems
Visual alerts in consumer appliance interfaces

LED Indication - Discrete Procurement Notes

Verify the specific binning codes for luminous intensity and wavelength alignment against project requirements. Confirm moisture sensitivity level handling procedures during storage and reflow soldering to maintain component integrity. Ensure the ordering suffix matches the required tape and reel specifications for manufacturing compatibility.

LED Indication - Discrete Selection Notes

Select this component when a compact dual-color indicator is required without increasing board space. Compare forward voltage characteristics against available drive circuitry to ensure proper biasing. Evaluate the combined optical output against ambient lighting conditions to guarantee visibility. Consider the thermal management capabilities of the PCB layout relative to the 75 mW power rating.

LED Indication - Discrete Part Context

This part belongs to the LTST-C235 series of multi-color LEDs from Lite-On. It shares the standard 1206 package dimensions with other variants in the family but differs in color composition and optical performance. The series supports various color combinations for diverse signaling applications.
