LTST-C930TBKT

LED Indication - Discrete Overview

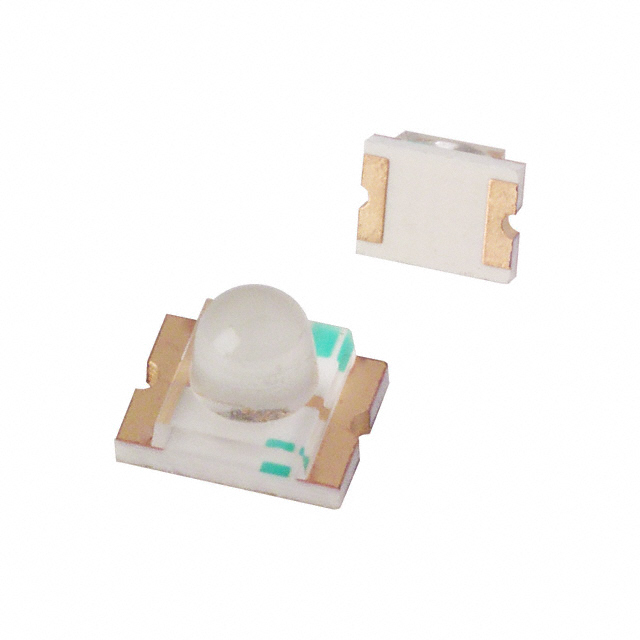

The LTST-C930TBKT is a single-color surface-mount LED manufactured by Lite-On Inc. It emits blue light with a peak wavelength of 470nm and features a clear, water-clear dome lens. The component utilizes a 1209 (3224 metric) package with dimensions of 3.20mm in length, 2.40mm in width, and a maximum height of 2.40mm. It operates with a typical forward voltage of 3V at a test current of 20mA. The device offers a viewing angle of 25 degrees and is rated for an operating temperature range from -55°C to +85°C.

LED Indication - Discrete Feature Summary

• Emits monochromatic blue light with a 470nm peak wavelength
• Features a water-clear dome lens for focused light emission
• Designed for surface-mount technology (SMD) assembly
• Complies with RoHS3 environmental standards

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Instrument panel illumination
• General-purpose visual signaling devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix KT against official Lite-On documentation to confirm tape-and-reel packaging specifications. Ensure that the 470nm wavelength designation matches the required optical performance for the target application. Confirm compliance with REACH regulations and MSL level 3 handling requirements during storage and soldering processes.

LED Indication - Discrete Selection Notes

Select this component when a compact 1209 footprint is required for blue indication. Consider the 25-degree viewing angle for directional visibility needs. Evaluate the 3V forward voltage drop against the system power supply constraints. Verify thermal management capabilities within the specified -55°C to +85°C operating range.

LED Indication - Discrete Part Context

This part belongs to the LTST-C930 series of single-color SMD LEDs from Lite-On Inc. The series includes various colors such as green, yellow, and orange, all sharing the same 1209 package dimensions. The TBKT suffix specifically denotes the blue color variant with standard testing parameters defined in the manufacturer's datasheet.

LED Indication - Discrete Replacement Considerations

Cross-reference other LTST-C930 series variants for different colors if spectral requirements change. Verify pinout compatibility and electrical characteristics before substituting with components from other manufacturers offering similar 1209 package footprints.
