LTST-G563EGBW-HM

LED Indication - Discrete Overview

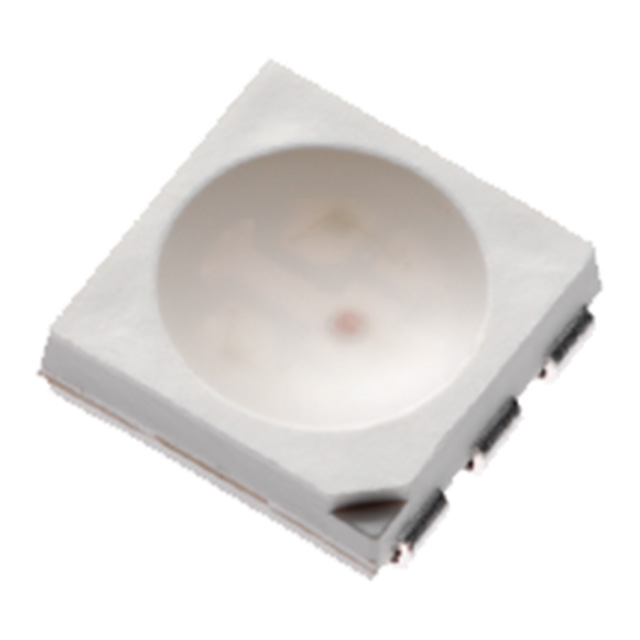

The LTST-G563EGBW-HM is a surface-mount RGB LED component manufactured by Lite-On Inc. It features independent red, green, and blue diodes within a single SMD5050-6P package with dimensions of 5.4mm length, 4.1mm width, and 1.6mm height. The device operates at a forward current of 20mA per channel with a working temperature range of -40°C to +85°C. Optical specifications include peak wavelengths of 630nm (Red), 518nm (Green), and 468nm (Blue). Luminous intensity ranges are 560mcd–1120mcd for Red, 1400mcd–2800mcd for Green, and 280mcd–560mcd for Blue.

LED Indication - Discrete Feature Summary

• Integrates three distinct color channels into a compact surface-mount form factor suitable for automated assembly.
• Provides independent control over red, green, and blue light emission for full-color mixing applications.

LED Indication - Discrete Applications

• Automated PC board assembly in space-sensitive electronic devices
• Status indicators for cordless and cellular telephones
• Visual signaling in laptop computers and network systems
• Indoor signage and appliance status displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'HM' against official Lite-On documentation to confirm exact binning or optical tolerances, as suffixes often denote specific manufacturing variations. Ensure compatibility with standard reflow soldering profiles for SMD components. Confirm that the SMD5050-6P footprint matches the target PCB design requirements before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a compact, multi-color indicator is required for high-density circuit boards. The SMD5050-6P package offers a balance between visibility and spatial efficiency. Consider the specific luminous intensity requirements for each color channel, particularly the higher output of the green diode relative to the blue channel, to ensure balanced white point or color mixing performance in the final application.

LED Indication - Discrete Part Context

This part belongs to the LTST-G563 series of RGB LEDs from Lite-On Inc., designed for surface-mount technology. The series is characterized by its small footprint and suitability for consumer electronics where space is limited. The G563 designation typically refers to the specific package style and lead configuration used in these multi-chip LED assemblies.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers for LTST-G563EGBW-HM are not available in the provided source material. Verify pinout and dimensional compatibility if considering alternative RGB SMD packages from other manufacturers.
