LTST-S313HGEBW

$0.86

Description：LED RGB DIFFUSED 1204 SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9c920a87e930 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-S313HGEBW is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED RGB DIFFUSED 1204 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-S313HGEBW

Description：LED RGB DIFFUSED 1204 SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：-
Lens Color：-
Lens Transparency：Diffused
Millicandela Rating：281mcd Red, 445mcd Green, 125.5mcd Blue
Lens Style：Round with Domed Top
Lens Size：2.00mm Dia
Voltage - Forward (Vf) (Typ)：-
Current - Test：-
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：622nm Red, 524nm Green, 469nm Blue
Wavelength - Peak：-
Features：-
Package / Case：1204 (3210 Metric)
Supplier Device Package：1204
Size / Dimension：3.20mm L x 1.00mm W
Height (Max)：1.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-S313HGEBW

LTST-S313HGEBW

LED Indication - Discrete Overview

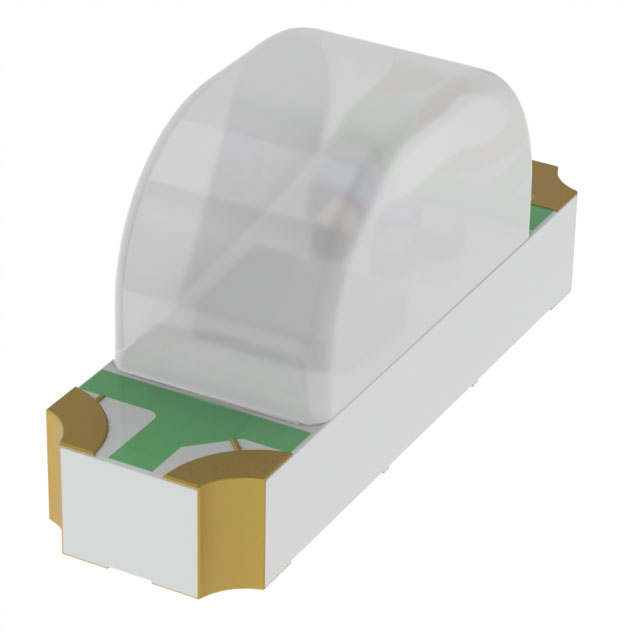

The LTST-S313HGEBW is a surface-mount RGB LED from Lite-On Inc., housed in a 1204 (3.2mm x 1.0mm) package with a height of 1.5mm. It features a diffused, colorless dome lens providing a 120-degree viewing angle. The component emits red light at 622nm, green at 532nm, and blue at 472nm. Typical forward current is 16mA. Optical intensities are specified as 281mcd for red, 445mcd for green, and 125.5mcd for blue. Operating temperature ranges from -20°C to +85°C.

LED Indication - Discrete Feature Summary

Integrated RGB configuration within a miniature SMD footprint
Diffused dome lens design for wide 120-degree visibility
Suitable for automated PC board assembly processes

LED Indication - Discrete Applications

Space-sensitive electronic device indicators
Automated PC board assembly applications
Miniature status indication systems

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when ordering, as Lite-On may issue Product Change Notifications (PCNs) regarding material management or wire materials. Confirm moisture sensitivity handling requirements during storage and reflow soldering. Ensure compatibility with standard SMD reflow profiles for the 1204 package type.

LED Indication - Discrete Selection Notes

Select this component for applications requiring compact RGB signaling where space constraints are critical. The 1204 package size supports high-density mounting on printed circuit boards. Verify that the required optical intensity meets system visibility needs across the specified operating temperature range.

LED Indication - Discrete Part Context

This part belongs to Lite-On's SMD LED product line designed for miniature sizes and special configurations. It falls under the category of discrete LED indications. The series focuses on components suitable for automated assembly and space-constrained environments.
