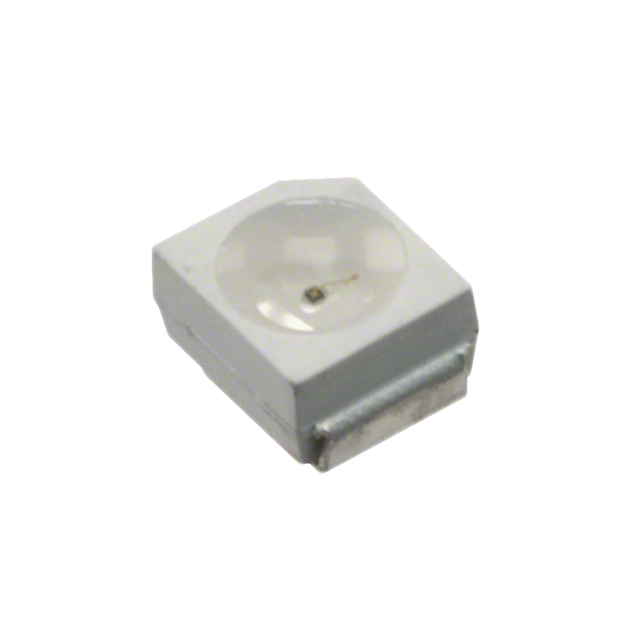

LTST-T680KGKT

Description：LED GREEN CLEAR 2PLCC SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ddf3e1caf3c0 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-T680KGKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED GREEN CLEAR 2PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-T680KGKT

Description：LED GREEN CLEAR 2PLCC SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：92.5mcd
Lens Style：Round with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：571nm
Wavelength - Peak：574nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-T680KGKT

LTST-T680KGKT

LED Indication - Discrete Overview

The LTST-T680KGKT is a single-color surface-mount LED manufactured by Lite-On Inc., designed for indicator applications. It emits green light with a peak wavelength of 571 nm and features a water-clear lens. The component utilizes a PLCC-2 package with dimensions of 3.5 mm in length, 2.8 mm in width, and a maximum height of 1.9 mm. Electrical characteristics include a forward voltage of 2.4 V at a test current of 20 mA, resulting in a power rating of 120 mW. The device offers a viewing angle of 120 degrees and operates within a temperature range of -40 °C to +85 °C.

LED Indication - Discrete Feature Summary

Emits green light with a 571 nm peak wavelength
Features a water-clear round flat lens design
Utilizes a standard PLCC-2 surface-mount package

LED Indication - Discrete Applications

Electronic equipment status indicators
Panel mount signal lights
Appliance control interfaces

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lite-On documentation to confirm optical and electrical parameters. Confirm moisture sensitivity level (MSL) requirements and reflow soldering profiles prior to assembly. Ensure compliance with RoHS3 directives as specified in the manufacturer's environmental classification data.

LED Indication - Discrete Selection Notes

Select this component when a standard 120-degree viewing angle and green indication are required. The PLCC-2 form factor supports automated surface-mount placement. Verify that the 2.4 V forward voltage aligns with the system drive circuitry and thermal management capabilities.

LED Indication - Discrete Part Context

This part belongs to the LTST-T680 series of single-color LEDs from Lite-On Inc. The series includes variants with different lens transparencies and colors, such as diffused red or yellow options. The T680 designation specifically refers to the PLCC-2 package style commonly used for general-purpose indicators.
