LTW-008ZDCG

LED Indication - Discrete Overview

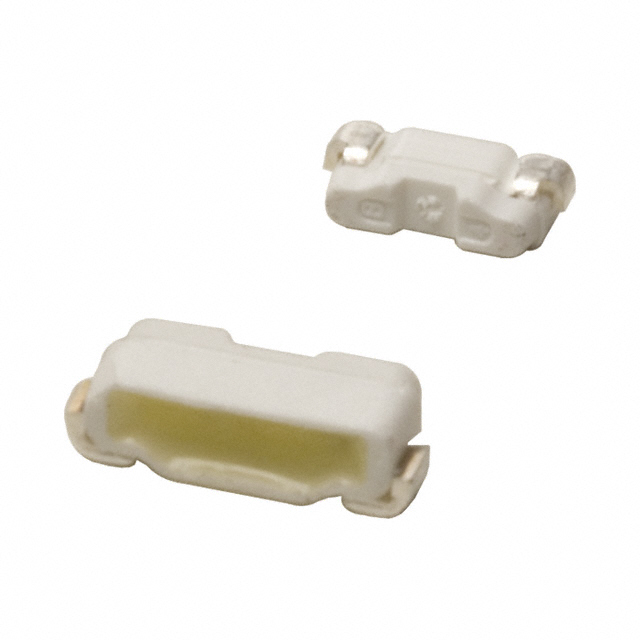

The LTW-008ZDCG is a white surface-mount LED from Lite-On Inc., designed for indicator applications. It features a standard configuration with a yellow lens and rectangular shape including a flat top. The component utilizes J-leads in a 2-SMD package measuring 2.80mm in length, 1.20mm in width, and a maximum height of 0.80mm. Key electrical parameters include a typical forward voltage of 3.25V at a test current of 20mA. It offers a viewing angle of 110 degrees and a luminous intensity of 1290mcd. The device complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) rating of 3.

LED Indication - Discrete Feature Summary

• Emits white light through a yellow rectangular lens with a flat top design.
• Utilizes J-lead surface mount technology for right-angle installation.
• Provides high luminous intensity suitable for clear visual indication.

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Power supply unit signal lights
• Consumer appliance control panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix ZDCG to confirm the white color code and J-lead package style. Ensure compatibility with the 2-SMD footprint dimensions of 2.80mm by 1.20mm during PCB layout. Confirm RoHS3 compliance requirements for the target market. Check MSL 3 handling procedures to prevent moisture damage prior to soldering.

LED Indication - Discrete Selection Notes

Select this component when a compact right-angle LED with high brightness is required. The J-lead design facilitates specific mounting orientations different from standard gull-wing packages. Consider the 3.25V forward voltage drop for circuit drive calculations. Verify that the 110-degree viewing angle meets the visibility requirements of the application enclosure.

LED Indication - Discrete Part Context

This part belongs to the LTW-008 series of surface-mount LEDs manufactured by Lite-On Inc. The series focuses on small-form-factor indicators for portable and space-constrained electronics. The manufacturer specializes in optoelectronic solutions with extensive experience in LED production since 1975.

LED Indication - Discrete Replacement Considerations

Cross-reference with other LTW-008 variants if different colors or intensities are needed. Verify mechanical compatibility with existing footprints before substituting with similar J-lead components from other manufacturers.
