LUW JNSH.EC-BSBU-5E8G-1

LED Indication - Discrete Overview

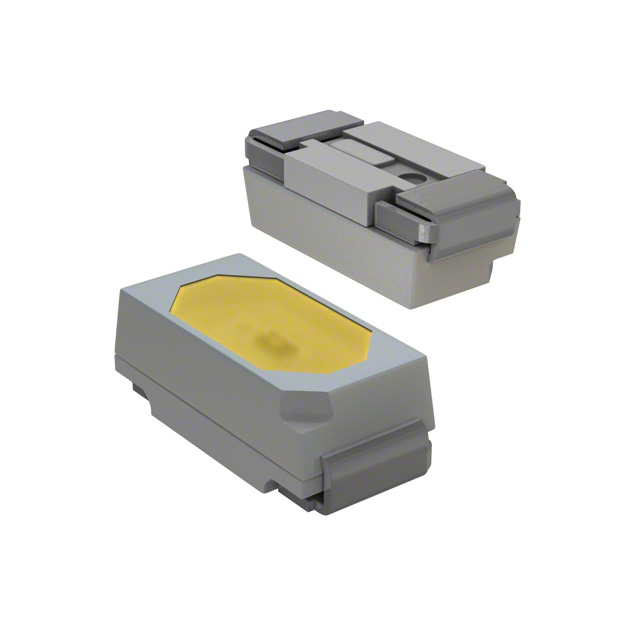

The LUW JNSH.EC-BSBU-5E8G-1 is a white, cool color surface-mount LED from the Duris E3 series by ams OSRAM. It features a rectangular lens with a flat top and diffused transparency. The component operates at a typical forward voltage of 3.05 V with a test current of 20 mA. It delivers a millicandela rating of 2520 mcd. The package is a 2-SMD J-leaded type with dimensions of 3.00 mm in length and 1.40 mm in width. The lens size measures 2.30 mm by 1.50 mm, with a maximum height of 1.30 mm.

LED Indication - Discrete Feature Summary

• Utilizes the Duris E3 series platform for compact surface-mount integration
• Features a diffused rectangular lens with a flat top design
• Provides high luminous intensity within a small form factor

LED Indication - Discrete Applications

• Smart personal care devices
• Home appliances
• Cordless power tools

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels. Confirm that the part number matches the specific cool white variant. Check for end-of-life status or discontinuation notices from the manufacturer. Ensure storage conditions comply with moisture sensitivity levels if applicable. Validate packaging integrity upon receipt to prevent damage to the delicate SMD leads.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-intensity white indicator is required for space-constrained designs. The Duris E3 series offers a balance of performance and footprint suitable for modern electronics. Consider the 3.05 V forward voltage drop for circuit design compatibility. The diffused lens style ensures uniform light distribution for visual signaling applications.

LED Indication - Discrete Part Context

This LED belongs to the Duris E3 family, designed for high-density PCB layouts. ams OSRAM targets this series for smart home and tool applications requiring reliable optical signaling. The product line emphasizes miniaturization while maintaining robust electrical characteristics for industrial and consumer environments.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official distributor databases for cross-reference options if this specific model is unavailable.
