LV8019LP-MPB-E

Overview

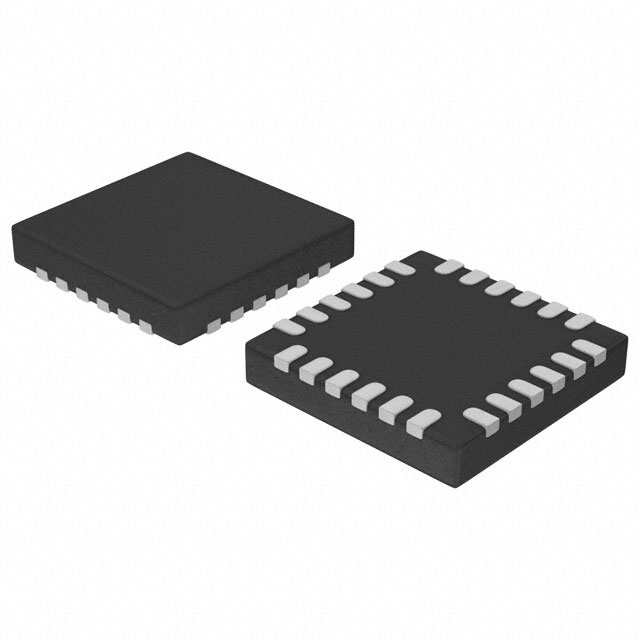

The LV8019LP-MPB-E is a fully integrated Bi-CMOS motor driver designed for general-purpose applications. It supports brushed DC motor configurations and operates within a supply voltage range of 2.7 V to 6 V, with an extended input range of 3 V to 7.4 V. The device utilizes the VQLP-24 package, measuring 3.5x3.5 mm. It features RoHS compliance and lead-free construction, suitable for environments requiring specific thermal and electrical constraints.

Feature Summary

• Fully integrated Bi-CMOS technology for efficient motor control
• Supports standard brushed DC motor configurations
• Compact VQLP-24 package design

Applications

• General purpose motor control systems
• Consumer electronics requiring compact motor drivers
• Industrial automation components

Procurement Notes

Verify the exact datasheet specifications directly from onsemi official documentation before integration. Confirm that the VQLP-24 package dimensions and pinout match your PCB layout requirements. Ensure the operating voltage range aligns with your system's power supply rails. Check for any specific handling or storage conditions mandated by the manufacturer for this component type.

Selection Notes

Select this component when a compact, fully integrated solution for brushed DC motors is required. The Bi-CMOS process offers a balance of performance and efficiency. Consider the 3.5x3.5 mm footprint for space-constrained designs. Verify compatibility with the intended supply voltage levels, specifically the 2.7 V to 6 V operational window.

Part Context

This part belongs to onsemi's portfolio of intelligent power and sensing technologies. It falls under the motor drivers category, utilizing Bi-CMOS parallel architecture. The product line targets automotive, industrial, and consumer markets, focusing on reliable and efficient motion control solutions within a small form factor.

Replacement Considerations

Consult official onsemi documentation for verified substitute part numbers. Cross-reference package types and electrical characteristics carefully. Ensure any alternative maintains the same Bi-CMOS functionality and voltage tolerances.
