LV8104V-MPB-H

Overview

The LV8104V-MPB-H is a three-phase brushless motor controller and driver manufactured by onsemi. It operates within a supply voltage range of 16 V to 28 V and draws a typical operating supply current of 15 mA. The device is designed for surface mount installation in an SSOP-44 package. It functions reliably across an ambient temperature range from -20°C to +80°C. The component is classified under PMIC - Power Management ICs, specifically Fan / Motor Controllers / Drivers. It features moisture sensitivity classification and complies with RoHS standards.

Feature Summary

• Integrated control and driving capability for three-phase brushless motors

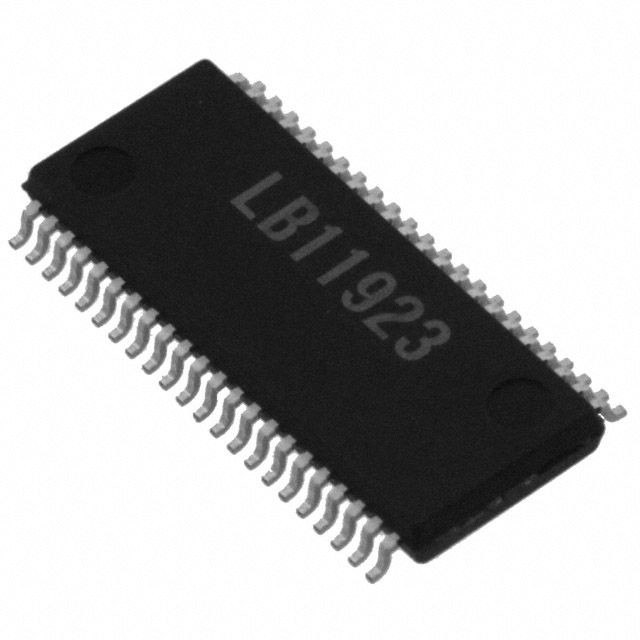

• Surface-mount SSOP-44 package design for compact integration
• Operational reliability across extended industrial temperature ranges

Applications

• Brushless DC motor control systems
• Fan speed regulation circuits
• Motion control applications requiring three-phase drive

Procurement Notes

Verify the specific suffix MPB against official datasheets to confirm packaging type and material composition. Confirm end-of-life status as distribution channels may vary. Ensure compatibility with existing PCB footprints for SSOP-44 packages. Check moisture sensitivity levels for proper storage and handling requirements before assembly.

Selection Notes

Select this component when a dedicated three-phase BLDC driver is required within a 16V to 28V system. The SSOP-44 package suits designs needing moderate pin counts in a small footprint. Verify thermal performance meets application needs given the specified operating temperature limits. Compare against alternative series if higher current capacity or different interface options are necessary.

Part Context

This part belongs to the LV8104V series of motor controllers. It serves as a specialized solution for managing brushless motors in consumer and industrial electronics. The series focuses on integrating control logic with power drivers to simplify system design. It represents onsemi's approach to efficient power management for rotational motion applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides for potential alternatives.
