LV8806QA-MH

Overview

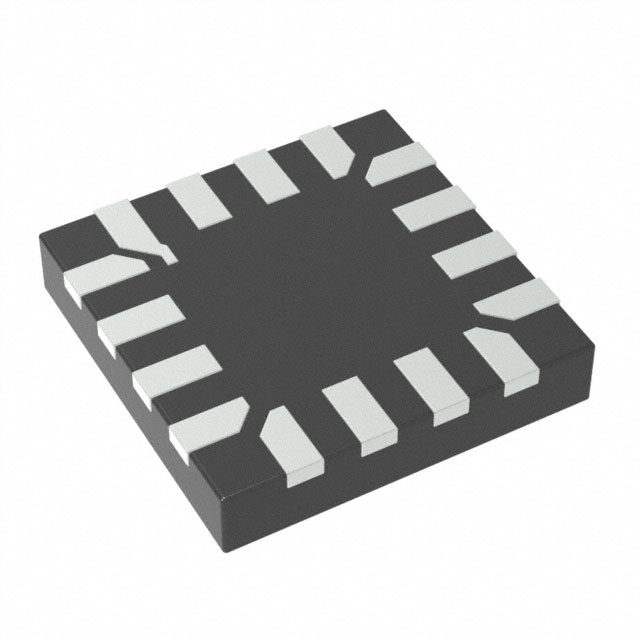

The LV8806QA-MH is a three-phase motor driver manufactured by onsemi, designed for fan and motor control applications. It operates within a supply voltage range of 2 V to 6 V and delivers an output current of 700 mA. The device functions at frequencies between 20 kHz and 50 kHz with a power dissipation of 800 mW. It supports surface mount installation in a UQFN-16 package and withstands operating temperatures from -40 C to +95 C.

Feature Summary

• Integrated three-phase motor drive capability
• Supports surface mount technology in compact packaging
• Operates across extended industrial temperature ranges

Applications

• Fan motor control systems
• General purpose motor drivers
• Motion control circuits

Procurement Notes

Verify component authenticity through authorized channels as the part is marked obsolete. Confirm RoHS compliance status via official documentation before integration. Check for end-of-life notices or production discontinuance notifications to ensure long-term availability constraints are understood. Validate package markings against datasheet specifications to prevent counterfeit substitution.

Selection Notes

Select this component for low-voltage three-phase applications requiring moderate current drive. Ensure design accommodates the specified thermal dissipation limits within the UQFN-16 footprint. Verify that system voltage requirements align with the 2 V to 6 V operational window. Consider the frequency range compatibility with control signals for optimal performance.

Part Context

This device belongs to the LV8806QA series of motor controllers. It falls under the broader category of PMIC motor drivers offered by onsemi. The product line targets efficient management of small to medium-sized motors in consumer and industrial electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
