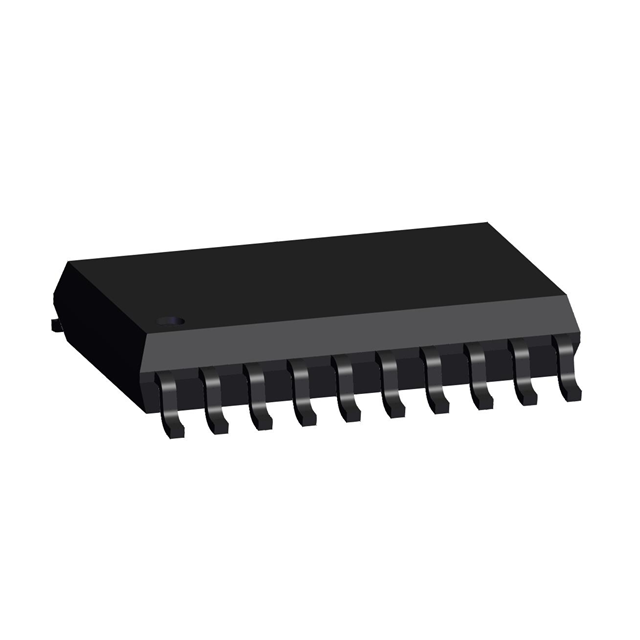

LV88561JA-AH

$0.95

Description：MOTOR DRIVER, SINGLE-PHASE, PWM,
Series：*
Mfr：onsemi
Package：Bulk

SKU:f9de23c82cc4 Category: Motor Drivers, Controllers Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOTOR DRIVER, SINGLE-PHASE, PWM,
Series：*
Mfr：onsemi
Package：Bulk
Motor Type - Stepper：-
Motor Type - AC, DC：-
Function：-
Output Configuration：-
Interface：-
Technology：-
Step Resolution：-
Applications：-
Current - Output：-
Voltage - Supply：-
Voltage - Load：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

LV88561JA-AH

Overview

The LV88561JA-AH is a pre-driver for single-phase 24 V/48 V BLDC motors, featuring a closed-loop controller for motor rotation speed. It enables low vibration and low noise operation with lead-angle adjustment capabilities. The component operates within a temperature range of -40 °C to +105 °C and utilizes an SSOP-20 package.

Feature Summary

Integrated closed-loop controller for precise motor rotation speed management
Optimized for low vibration and low noise performance in single-phase applications
Supports adjustable lead-angle settings for enhanced motor control

Applications

Single-phase 24 V/48 V BLDC motor drive systems
Fan control applications requiring low noise operation
Precision motion control devices

Procurement Notes

Verify current availability status as the part may be subject to limited supply or end-of-life constraints. Confirm package type and suffix requirements against specific design needs. Ensure compliance with moisture sensitivity levels during handling and storage procedures prior to assembly.

Selection Notes

Select this component for single-phase BLDC applications requiring integrated speed control. Evaluate thermal performance within the specified operating temperature range. Consider the SSOP-20 package dimensions for PCB layout compatibility. Verify voltage compatibility with 24 V or 48 V system architectures.

Part Context

This device belongs to the LV88561 series, designed specifically for single-phase brushless DC motor drives. It serves as a pre-driver with built-in control logic, distinguishing it from basic gate drivers by offering closed-loop functionality for speed regulation and angle adjustment.

Replacement Considerations

LV88561JA-R is a reel-packaged variant of the same functional device. Cross-reference datasheets to confirm identical electrical characteristics and pinout compatibility before substitution.
