LV8860V-MPB-H

Overview

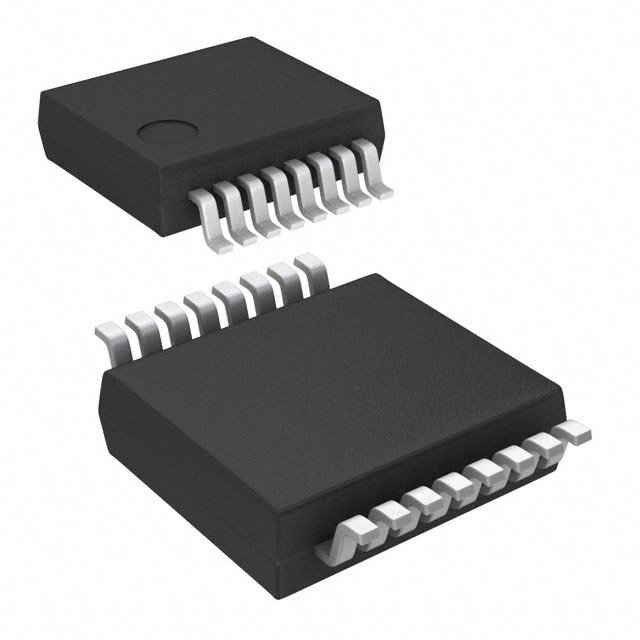

The LV8860V-MPB-H is a brushless DC motor controller and driver manufactured by onsemi, designed for fan motor applications. It operates within a supply voltage range of up to 34 V and delivers an output current of 700 mA. The device features a low operating supply current of 1.7 mA and functions reliably across a temperature range from -40 °C to +95 °C. It is housed in an SSOP-16 surface-mount package. This component is currently classified as obsolete, indicating that the manufacturer will discontinue production.

Feature Summary

• Integrated control and drive circuitry for brushless DC motors
• Optimized for fan motor applications with high efficiency
• Compact surface-mount packaging for space-constrained designs

Applications

• Fan motor control systems
• Brushless DC motor drives
• Motion control circuits

Procurement Notes

This part number is officially listed as obsolete by onsemi, meaning it is no longer in active production and will be discontinued. Availability through distributors is limited or non-existent, and orders may not be accepted. Designers should verify end-of-life status with suppliers and initiate replacement strategies immediately to avoid supply chain disruptions for existing products.

Selection Notes

Engineers selecting this component must account for its obsolete status when designing new hardware. While the electrical specifications suit low-power fan applications, the lack of future supply necessitates evaluating alternative components. Selection should prioritize parts with similar pinouts and performance characteristics that are currently in active production to ensure long-term manufacturability.

Part Context

The LV8860V series belongs to onsemi's portfolio of motor controllers and drivers. These devices integrate gate drivers and control logic to simplify the design of brushless motor systems. The specific MPB suffix denotes the tape-and-reel packaging format, while the TLM variant typically refers to tube packaging. This family targets cost-sensitive and space-efficient motion control solutions.

Replacement Considerations

Publicly confirmed substitute part numbers for the LV8860V-MPB-H are not available in the provided documentation. Due to the obsolete status, direct replacements require manual evaluation based on functional equivalence. Designers should consult onsemi's official obsolescence notices or contact technical support for validated cross-reference recommendations.
