LW M67C-T1U2-5K8L-Z

LED Indication - Discrete Overview

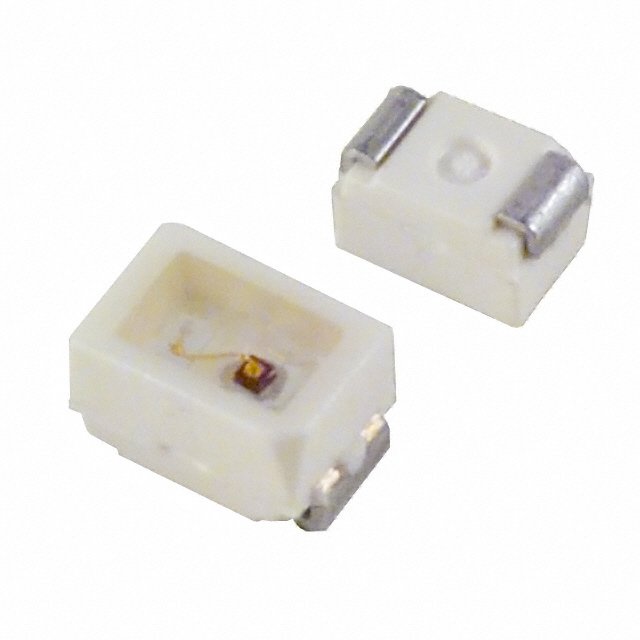

The LW M67C-T1U2-5K8L-Z is a single-color white LED from the Mini TOPLED series by ams OSRAM. It features an SMD/SMT installation style in a 2-SMD, J-lead package with dimensions of 2.00mm length and 1.40mm width. The component emits cold white light at a correlated color temperature of 5600K. Key electrical parameters include a forward voltage of 3.6V and a forward current rating of 20mA. The lens is rectangular with a flat top and non-diffused transparency, providing a viewing angle of 120 degrees.

LED Indication - Discrete Feature Summary

• Miniature surface-mount design utilizing a J-lead configuration for compact PCB integration.
• Rectangular lens geometry with a flat top profile to direct light output efficiently.
• Cold white spectral emission optimized for high-contrast visual indication applications.

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer appliances
• Panel indicators for industrial control systems

LED Indication - Discrete Procurement Notes

Verify component availability status directly with the manufacturer or authorized distributors, as this specific part number may be subject to end-of-life restrictions or discontinuation notices. Confirm that the required packaging format aligns with automated assembly capabilities. Ensure compliance with RoHS directives and moisture sensitivity levels prior to procurement to prevent handling damage during storage and reflow processes.

LED Indication - Discrete Selection Notes

Select this component when a low-profile, high-intensity white indicator is required for space-constrained designs. The 120-degree viewing angle ensures broad visibility without requiring additional optical lenses. Verify that the 3.6V forward voltage matches the system's drive circuitry constraints. Consider the J-lead package compatibility with standard pick-and-place equipment for manufacturing efficiency.

LED Indication - Discrete Part Context

This device belongs to the Mini TOPLED family, which specializes in small-footprint surface-mount LEDs. The series provides reliable performance for general indication purposes. The specific model utilizes a white phosphor conversion technology to achieve the specified color temperature. It represents a standard solution for modern electronics where board real estate is limited but clear visual feedback is necessary.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 0805-equivalent footprint, J-lead termination, 5600K color temperature, and 120-degree viewing angle. Consult the manufacturer for current active replacements if this unit is discontinued.
