LW VH8G-Q2OO-4M6N-1-5-R18-Z

LED Indication - Discrete Overview

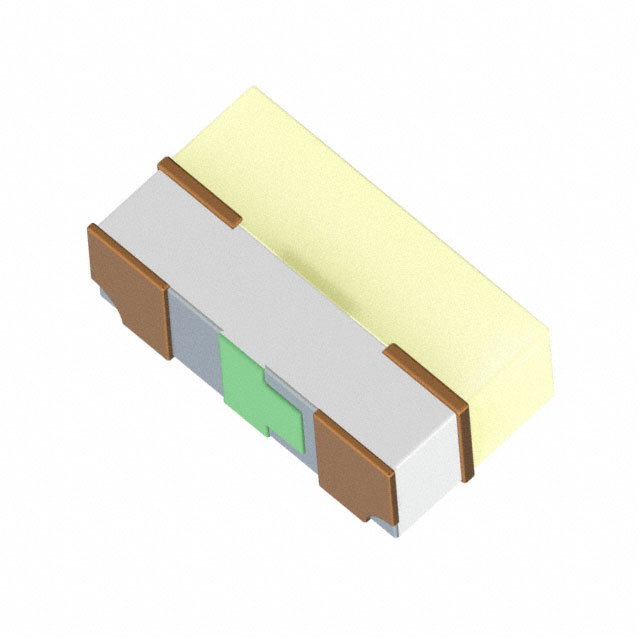

The LW VH8G-Q2OO-4M6N-1-5-R18-Z is a low-power white LED from the LW VH8G series, manufactured by ams OSRAM. Designed for surface-mount technology (SMT), this component utilizes a compact 0402 package with physical dimensions of 1.0mm x 0.5mm x 0.4mm. It operates at a forward voltage of 2.85V and a test current of 5mA. The device emits white light and is RoHS compliant. It is supplied in cut tape or reel packaging formats suitable for automated assembly processes.

LED Indication - Discrete Feature Summary

• Compact 0402 surface-mount form factor measuring 1.0x0.5x0.4mm
• Low-power white light emission optimized for space-constrained designs
• RoHS compliant construction for environmental safety standards

LED Indication - Discrete Applications

• Indicator lighting in portable consumer electronics
• Status indication in compact IoT devices
• Backlighting for small display interfaces

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffixes to ensure correct binning and packaging configuration. Confirm that the 0402 package dimensions align with the PCB footprint requirements. Check moisture sensitivity levels and reflow soldering profiles against manufacturing guidelines. Ensure the white color temperature matches the design specifications for the intended application environment.

LED Indication - Discrete Selection Notes

Select this component when a minimal footprint is required for white illumination. The low power consumption makes it suitable for battery-operated devices. Consider the 2.85V forward voltage drop when designing the drive circuitry. Verify compatibility with standard SMT assembly equipment due to the small package size.

LED Indication - Discrete Part Context

This part belongs to the LW VH8G series of chip LEDs from ams OSRAM. The series focuses on providing reliable white light sources in ultra-compact packages. The VH8G designation indicates specific optical and thermal characteristics tailored for high-density mounting applications within the broader LED portfolio.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer cross-reference guides for potential alternatives.
