LW514-BULK

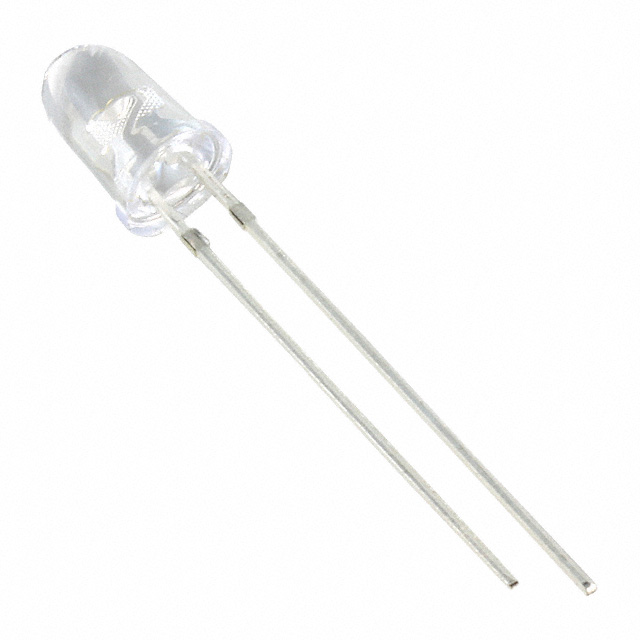

Description：LED WHITE 5MM ROUND T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Bulk

SKU:8c205e49294d Category: LED Indication - Discrete Brand: Seoul Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LW514-BULK is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Seoul Semiconductor Inc.. Its product description is LED WHITE 5MM ROUND T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LW514-BULK

Description：LED WHITE 5MM ROUND T/H
Series：-
Mfr：Seoul Semiconductor Inc.
Package：Bulk
Color：White
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：35000mcd
Lens Style：Round with Domed Top
Lens Size：5.00mm Dia
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：15°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：5mm Round
Size / Dimension：-
Height (Max)：9.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LW514-BULK

LW514-BULK

LED Indication - Discrete Overview

The LW514-BULK is a white discrete LED indicator manufactured by Seoul Semiconductor Inc. It features a radial package with a 5mm round lens style and a domed top. The component operates with a typical forward voltage of 3.2V at a test current of 20mA. It provides a luminous intensity of 35cd and functions within an ambient temperature range of -40°C to +100°C. The maximum height of the device is 9.60mm, designed for through-hole mounting applications.

LED Indication - Discrete Feature Summary

Radial through-hole package construction
White light emission with domed lens design
Wide operating temperature capability

LED Indication - Discrete Applications

Panel status indication
Power supply indicators
Control board signaling

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix and lot code against the manufacturer's latest documentation before procurement. Confirm that the radial lead form matches the target PCB footprint requirements. Ensure compliance with RoHS standards as indicated in available product listings. Cross-reference the part number with official distributor catalogs to confirm current availability status and manufacturing origin details.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm through-hole white LED is required for general indication purposes. Consider the 3.2V forward voltage drop for circuit design calculations. Evaluate the 35cd intensity level against visibility requirements for the intended enclosure. Verify mechanical clearance constraints regarding the 9.60mm maximum height dimension during layout planning.

LED Indication - Discrete Part Context

This part belongs to the Seoul Semiconductor discrete LED portfolio, focusing on indicator applications. The brand specializes in optical semiconductor technologies for automotive, display, and lighting markets. The LW514 series represents standard radial LED components used for visual signaling in electronic assemblies.
