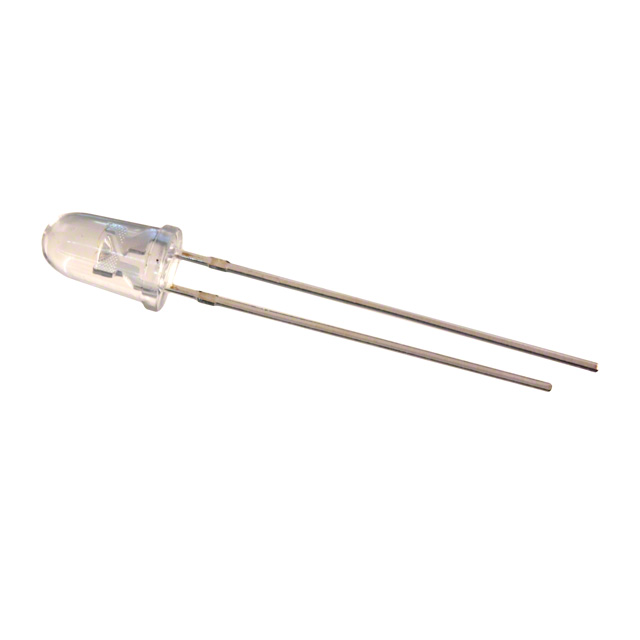

LW520A is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Seoul Semiconductor Inc.. Its product description is LED WHITE ROUND 5MM T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for LW520A
- Description：LED WHITE ROUND 5MM T/H
- Series：-
- Mfr：Seoul Semiconductor Inc.
- Package：Tape & Box (TB)
- Color：White
- Configuration：Standard
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：14000mcd
- Lens Style：Round with Domed Top
- Lens Size：5.00mm Dia
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：22°
- Mounting Type：Through Hole
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：Radial
- Supplier Device Package：-
- Size / Dimension：-
- Height (Max)：9.70mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for LW520A
LED Indication - Discrete Overview
The LW520A is a white lamp LED manufactured by Seoul Semiconductor Inc. This component is classified under discrete LED indication products. It is designed for use in lighting applications requiring white light emission. The device represents part of the manufacturer's portfolio of optical semiconductor technologies.
LED Indication - Discrete Feature Summary
- Emits white light for illumination purposes
- Designed as a discrete LED indicator component
LED Indication - Discrete Applications
- General lighting applications
- White lamp illumination systems
LED Indication - Discrete Procurement Notes
Verify current availability status before procurement planning, as this product is no longer manufactured. Confirm tariff applicability if shipping to the United States, as costs may apply and are calculated during shipping. Check with authorized distributors for final stock confirmation and compliance details.
LED Indication - Discrete Selection Notes
Consider end-of-life status when selecting this component for new designs. Evaluate alternative white LED solutions from Seoul Semiconductor or other manufacturers that offer active production support. Ensure replacement parts meet required electrical and mechanical specifications for the target application.
LED Indication - Discrete Part Context
Seoul Semiconductor Inc. develops innovative LED and optical semiconductor technologies for automotive, display, lighting, and industrial applications. The company holds a significant patent portfolio covering chips to applications. The LW520A belongs to their discrete LED indication category, supporting various lighting needs.
LED Indication - Discrete Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consider reviewing similar white lamp LEDs from Seoul Semiconductor, such as the LW540A, for potential functional equivalence.
