M-F-4.9152M-20-2030-1070-120

Crystals Overview

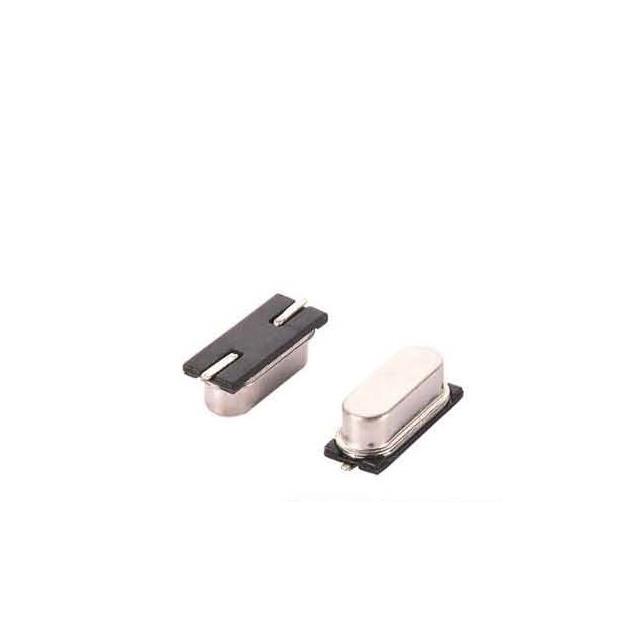

The M-F-4.9152M-20-2030-1070-120 is a passive crystal oscillator manufactured by CEC Xtal, operating at a nominal frequency of 4.9152 MHz. It features a fundamental mode of operation with a frequency tolerance of ±20 ppm and a load capacitance of 20 pF. The component is designed for surface-mount installation in a 2-SMD, No Lead package configuration. It supports an operating temperature range from -10°C to +70°C, making it suitable for standard industrial applications requiring stable timing signals.

Crystals Feature Summary

• Fundamental resonance mode ensures precise frequency generation without harmonic suppression requirements
• Surface-mount construction facilitates automated assembly and compact circuit board layouts
• Standardized load capacitance simplifies matching network design for microcontroller interfaces

Crystals Applications

• Microcontroller system clock sources
• Serial communication interface timing
• Industrial control module oscillators

Crystals Procurement Notes

Verify the specific package dimensions and terminal finish against the official datasheet before integration. Confirm that the operating temperature range meets the environmental requirements of the target application. Ensure compatibility with the load capacitance specifications of the host circuit to maintain frequency accuracy.

Crystals Selection Notes

Select this component when a 4.9152 MHz frequency is required for integer baud rate division in serial communications. Consider the ±20 ppm tolerance for precision timing needs. Evaluate the 2-SMD form factor against available PCB space constraints. Verify thermal stability requirements against the specified operating temperature range.

Crystals Part Context

This part belongs to the family of passive crystals offered by CEC Xtal. It provides a stable reference frequency for digital circuits. The 4.9152 MHz value is commonly used in communication protocols due to its divisibility into standard baud rates. The component serves as a core timing element in embedded systems.

Crystals Replacement Considerations

Cross-reference with other 4.9152 MHz SMD crystals from different manufacturers. Compare load capacitance values to ensure circuit compatibility. Verify package footprint alignment for direct replacement. Check temperature ranges for environmental suitability.
