Product Detailed Parameters

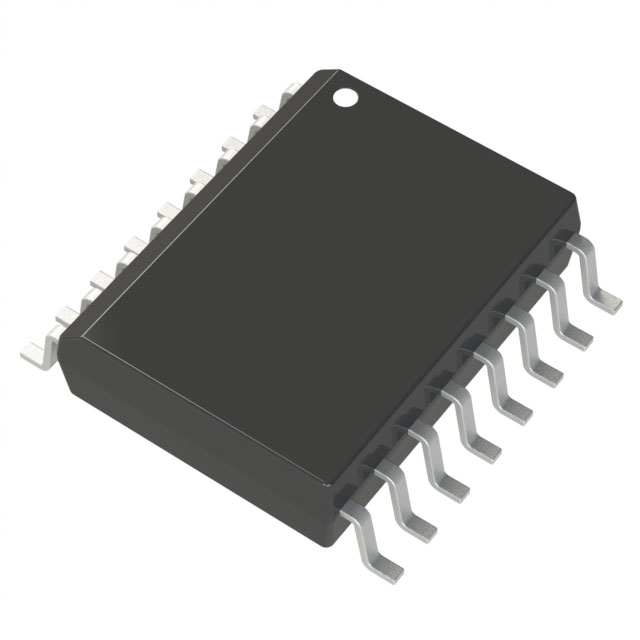

- Description：IC AMP OPTICAL POST MMIC 16QSOP
- Series：-
- Mfr：MACOM Technology Solutions
- Package：Tray
- Type：Ethernet
- Applications：-
- Mounting Type：Surface Mount
- Package / Case：16-LSSOP (0.154", 3.90mm Width)
- Supplier Device Package：16-QSOP
- Grade：-
- Qualification：-
Download product information
Overview
The M02046G-15 is a linear optical post-amplifier MMIC designed for Ethernet applications. It operates at a speed of 1.25 GHz and utilizes PECL logic levels. The component is housed in a 16-QSOP surface-mount package. It functions as a special purpose linear amplifier intended to boost signal strength in optical data transmission systems.
Feature Summary
- Designed for optical post-amplification in high-speed data links
- Supports 1.25 GHz operational speeds
- Utilizes PECL interface compatibility
- Surface-mount construction for automated assembly
Applications
- Ethernet signal processing
- Optical data transmission systems
- Linear amplification for optical receivers
Procurement Notes
Verify the manufacturer designation, as sources may list M/A-COM or MACOM Technology Solutions. Confirm the specific suffix (e.g., -15) matches the required package and electrical specifications. Ensure RoHS compliance status aligns with project requirements. Cross-reference datasheet revisions to confirm pinout and performance parameters remain consistent with system design needs.
Selection Notes
Select this component when a dedicated linear amplifier is required for 1.25 GHz optical signals. The PECL interface dictates compatible driver and receiver circuitry. The 16-QSOP package size must fit the available PCB footprint. Consider thermal management requirements associated with linear operation at the specified frequency.
Part Context
This part belongs to the M0204xG series of optical post-amplifiers from MACOM. These components are specialized MMICs used to condition signals after photodetection. The series typically includes variants with different suffixes indicating package types or minor electrical variations, all targeting high-speed serial data applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with any alternative linear amplifiers by comparing gain, bandwidth, and interface voltage levels carefully.
