M08980G-12 is listed in the LED Driver IC range at ChipApex. The manufacturer field lists MACOM Technology Solutions. Its product description is IC LED DRIVER 1.2A. Review the specifications below when checking this part for your BOM.
LED Driver IC specifications for M08980G-12
- Description：IC LED DRIVER 1.2A
- Series：-
- Mfr：MACOM Technology Solutions
- Package：Tray
- Type：-
- Topology：-
- Internal Switch(s)：-
- Number of Outputs：3
- Voltage - Supply (Min)：-
- Voltage - Supply (Max)：-
- Voltage - Output：-
- Current - Output / Channel：1.2A
- Frequency：-
- Dimming：-
- Applications：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
LED Driver IC datasheet and documents for M08980G-12
LED Driver IC Overview

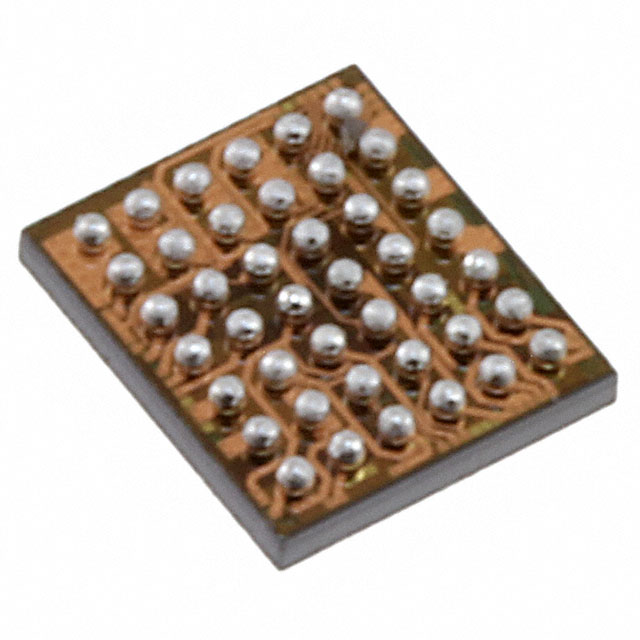

The M08980G-12 is a Power Management IC (PMIC) designed for LED driver applications, manufactured by MACOM Technology Solutions. It operates as a high-current LED driver with an output current capacity of 1.2A per channel. The device features three independent outputs and utilizes a BGA42 package configuration. This component is classified under PMIC - LED Drivers and is identified as an obsolete part within the manufacturer's portfolio.
LED Driver IC Feature Summary
- Integrated power management solution specifically engineered for high-density LED driving requirements
- Provides three distinct output channels for multi-zone or complex LED array control
- Capable of delivering regulated high-current output suitable for demanding illumination applications
LED Driver IC Applications
- High-definition display backlighting systems
- Professional lighting equipment requiring precise current regulation
- Industrial LED arrays needing multi-channel drive capabilities
LED Driver IC Procurement Notes
Verify component status carefully as this item is listed as obsolete. Confirm availability through secondary market distributors only. Ensure compatibility with existing board designs since new production from the manufacturer is discontinued. Check RoHS compliance documentation if required for specific regulatory environments.
LED Driver IC Selection Notes
Select this component only for legacy system maintenance or repair where original specifications must be maintained. Evaluate alternative modern equivalents if designing new hardware due to obsolete status. Consider the BGA42 package constraints during PCB layout planning. Verify that the 1.2A output rating meets the thermal and electrical requirements of the target LED load.
LED Driver IC Part Context
This part belongs to the M08980 base product series from MACOM Technology Solutions. It is categorized within the broader PMIC segment, specifically targeting LED driver functionalities. The manufacturer has transitioned focus, marking this specific variant as end-of-life, reflecting shifts in their active product lineup toward newer generations of power management integrated circuits.
LED Driver IC Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Due to the obsolete status, direct replacements may require functional equivalence analysis rather than pin-to-pin substitution.
