M09000G-14

LED Driver IC Overview

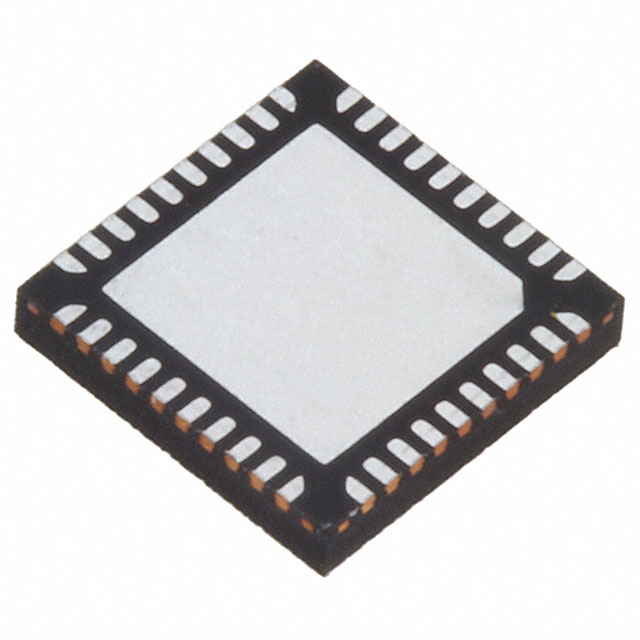

The M09000G-14 is a power management IC designed for high-definition display applications. It functions as an LED driver with three outputs, utilizing DC-DC regulation in both step-down (buck) and step-up (boost) configurations. The device supports PWM dimming control and delivers a maximum output current of 1.2A per channel. It operates within a supply voltage range of 2.7V to 5.25V and provides a regulated output voltage of 4.6V. The component is housed in a 40-VFQFN exposed pad package measuring 5x5 mm, suitable for surface mount mounting.

LED Driver IC Feature Summary

• Integrates three independent LED driver channels with combined buck and boost topology for flexible backlighting control
• Supports pulse-width modulation (PWM) dimming for precise brightness adjustment
• Delivers up to 1.2A output current per channel with regulated voltage stability

LED Driver IC Applications

• High-definition LCD panel backlighting systems
• Portable electronic displays requiring efficient power regulation
• Mobile device screen illumination circuits

LED Driver IC Procurement Notes

Verify the manufacturer designation, noting that Aeroflex acquired MACOM Technology Solutions; components may bear either brand name. Confirm RoHS compliance status and lead-free finish specifications prior to procurement. Ensure the 40-VFQFN package variant matches the required footprint and thermal pad configuration for the target PCB design.

LED Driver IC Selection Notes

Select this component when designing HD display backlights requiring integrated buck-boost regulation for multiple LED strings. The 1.2A current capability suits medium-to-high brightness applications. Consider the 5x5mm QFN package constraints for thermal dissipation and layout density. Verify input voltage compatibility with the 2.7V to 5.25V operating range.

LED Driver IC Part Context

This part belongs to the M09000G series of power management ICs developed by MACOM Technology Solutions, now part of Aeroflex. The series targets display driver applications, offering integrated solutions for LED backlighting. MACOM specializes in radio, microwave, and millimeter-wave semiconductors, expanding into power management for consumer electronics through such specialized ICs.

LED Driver IC Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or manufacturer cross-reference tools for compatible alternatives with matching pinouts and electrical characteristics.
