M15733/28-0001

Overview

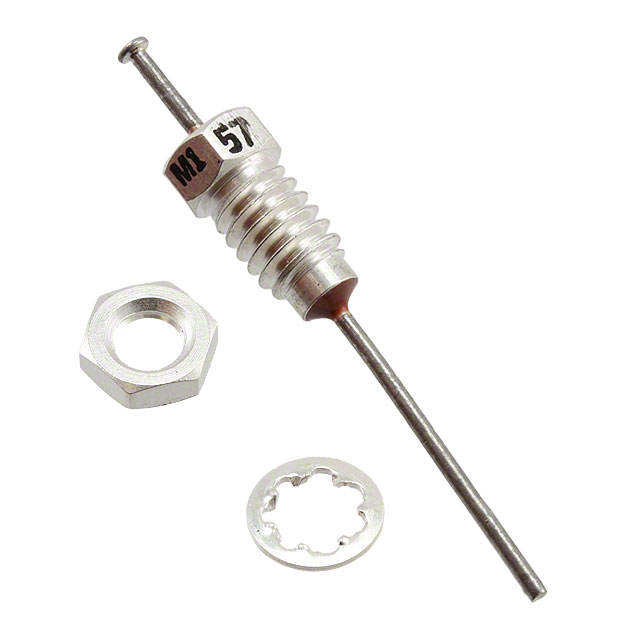

The M15733/28-0001 is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes a Pi filter circuit topology and features a capacitance of 2.5 nF (2500 pF). The component has a voltage rating of 200 V and supports a maximum DC current of 10 A. It operates within a temperature range of 0°C to +125°C. The package type is bulk, and it uses an 8-32 UNC-2A thread size for chassis mounting.

Feature Summary

• Provides electromagnetic interference suppression through integrated LC(PI) filtering architecture
• Designed for direct chassis mounting using standardized threaded interfaces
• Capable of handling high DC currents while maintaining signal integrity

Applications

• Chassis-mounted power line filtering in electronic enclosures
• EMI suppression for DC power inputs in industrial equipment
• Signal conditioning in military or aerospace systems requiring MIL-DTL-55342 compliance

Procurement Notes

Verify the manufacturer designation as Tusonix or CTS Electronic Components during sourcing. Confirm the specific capacitance value of 2.5 nF and the 8-32 UNC-2A thread specification match system requirements. Ensure the operating temperature range of -0°C to +125°C is suitable for the intended environment. Check RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a Pi-filter topology is required for EMI reduction on DC lines. The 10 A current rating makes it suitable for moderate power applications. The 200 V voltage rating provides headroom for standard low-voltage systems. Consider the bulk packaging format for manual assembly processes.

Part Context

This part belongs to the M15733 series of EMI feedthrough filters. These components are often associated with MIL-DTL-55342 specifications, indicating their use in ruggedized or defense-oriented electronics. The series includes various capacitance values and thread sizes to accommodate different circuit needs.

Replacement Considerations

Cross-reference tools may identify parametrically similar parts from other manufacturers. Verify that any substitute matches the 2.5 nF capacitance, 10 A current rating, and 8-32 UNC-2A thread size. Ensure the replacement also offers Pi-filter topology for equivalent noise attenuation characteristics.
